Intake fan 7.5KW motor Auto Spray Booth for Car Paint, Body
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|
Product Description
Product Description

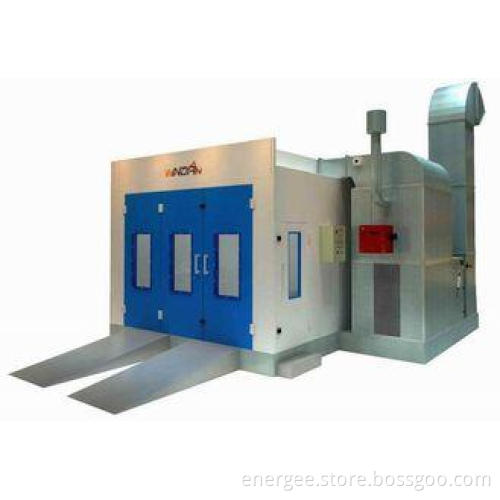

Intake fan 7.5KW motor Auto Spray Booth for Car Paint, Body Repair, baking WD-70
Specification
| Inside Dimension | 6900X4000X2800MM(LXWXH)&22'6''X 13'1''X9'2'' (LXWXH) |
| Outside Dimension | 7000X5550X3600MM(LXWXH)&23'X18'2''X 11'8''(LXWXH) |
| Main door | 3-fold, 3000X2700MM(WXH) with heat insulation glass window, aluminum alloy door frame |
| Personal door | 1-fold, 800X2000MM(WXH) with one step. There is two sets of pressure lock which will automatically open when the pressure inside is over the limit |
| Booth System | Wall panel :Rock Wool material, tongue and groove interlock construction, hickness: 50mm, 0.376mm steel plate |
| Basement and floor: complete steel assemble, 2 rows of grids, 2 rows of indented plates, galvanized. 2pcs of galvanized ramps, loading capacity of galvanized grating is 650 kg/wheel |
|
| Lighting System | Ceiling light: 4Pcs X8units=32PcsX36W |
| Glass | All window and light cover by ovenproof toughened glass |
| Generator setting type | Back upper intake air, back upper exhaust air, aluminum alloy frame, coated steel |
| Ventilation System | Intake fan: 1Pc turbo fan, 7.5KW motor, C.E, direct drive, air capacity:25000m3/h |
| Heating system | Italian Riello G20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 4~6 min.(Gas burner as optional) |
| SUS304 Stainless steel heat exchanger, anti-explosion hole for protection, highest temperature 80C, 1pc pneumatic damper from spraying to baking cycle. Reasonable structure, safe and reliable, big heat exchanging area, high heat utilization, more than 90% heat exchanging rate |
|
| Filter system | Prefilter, high efficiency filter EU5 Fine Filters, 6pieces (ceiling filter), floor filter, exhaust active carbon filter |
| Control system | Spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, time accumulator, pressure gauge, emergency stop, failure alarm, limited-temperature device, most of electrical spare part is import, C.E standard |
| Total power | 12KW |
