RG5S diesel burner Auto Spray Booth for car care painting,
  • RG5S diesel burner Auto Spray Booth for car care painting,
RG5S diesel burner Auto Spray Booth for car care painting,

RG5S diesel burner Auto Spray Booth for car care painting,

Min. Order:
1
Min. Order:
1
Delivery Time:
30 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Product Description
Product Description

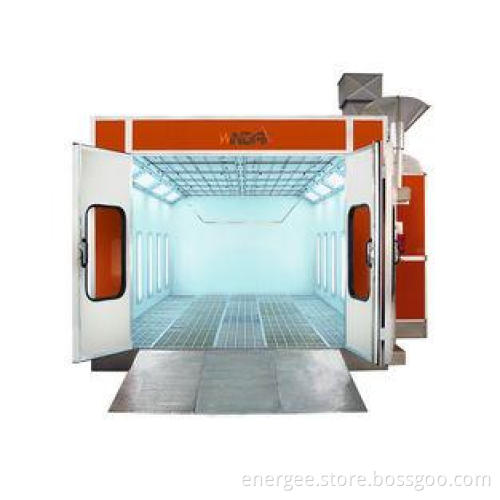

RG5S diesel burner Auto Spray Booth for car care painting, drying and Baking WD-50

1.certificate:CE

2.can be designed as requirement

3.safe, energy saving, economical

Specification

Inside Dimension 6900X4000X2700MM(LXWXH) &22'6''X 13'1''X8'9'' (LXWXH)
Outside Dimension 7000X5600X3500MM(LXWXH)&23'X18'4''X11'5'' (LXWXH)
Main door 3-fold, 3000X2650MM(WXH) with heat insulation glass window
Personal door 1-fold, 800X2000MM(WXH) with one step. There is two sets of pressure lock
which will automatically open when the pressure inside is over the limit
Booth System Wall panel :EPS(epispastics polystyrene) heat preservation panel double
skinned , tongue and groove construction, thickness: 50mm, roof panel:
roof panel: galvanized plate, 0.476mm colour steel cover the EPS.
Basement and floor:Adjustable height bolt, complete steel assemble. 5rows of
grids. 3pcs of ramps, each size: 900X2000MM(WXL)
Lighting System Ceiling light: 4Pcs X8units=32PcsX36W, Lower light: 2Pcs
X10units=20PCsX36W Philip tube, vertical installation
Generator setting type Back upper intake air, back upper exhaust air, aluminum alloy frame, coated steel
Ventilation System Intake fan: 1Pc double-intake centrifugal fan, , 7.5KW, air capacity:25000m3/h
Exhaust fan:1Pc double-intake centrifugal fan, 7.5KW, air capacity:25000m3/h
Heating system Italian Riello RG5S diesel burner, 260000Kcal, 4~6kg/set; heating-up time: 6~8 min. Gas burner as optional
SUS304 Stainless steel heat exchanger, anti-explosion hole for protection,
highest temperature 80C, 1pc electric damper from spraying to baking cycle.
Reasonable structure, safe and reliable, big heat exchanging area, high heat
utilization, more than 90% heat exchanging rate
Filter system Prefilter, high efficiency filter(ceiling filter),
floor filter, exhaust active carbon filter
Control system Spraying, risen-temperature spraying, baking temperature, time setting,
lighting switch, time accumulator, pressure gauge, emergency stop, failure
alarm, limited-temperature device
Total power 16KW
