Anti-corrosion Phosphate Gas Compressor Mazda Piston T3500

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

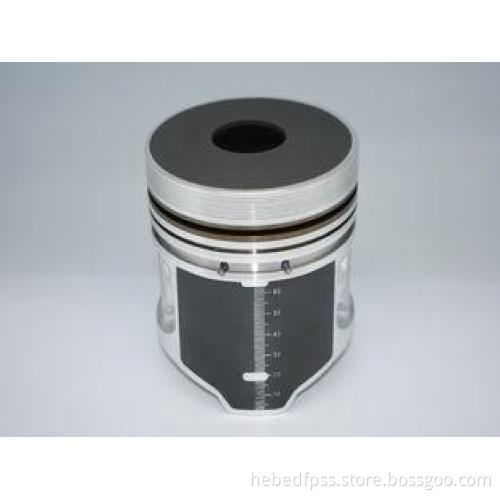

Anti-corrosion Phosphate Gas Compressor Mazda Piston T3500 B3Y6 With Sealed Power

MAZDA PISTON T3500 FOR DIESEL ENGINE OEM SL07-23-200A

Piston Technology

Tin Coating

Tin is coated by electro analysis or heat dipping at thickness between 0.001 and 0.003mm. Tin is characterized as soft and oil-friendly which improves running-in efficiency of piston and liner. This coating is most commonly used.

Graphite Sprayed at Piston Skirt/Graphite Printing
Graphite is characterized as good lubricating, which helps lubricant adhering to coating surface. The coating will reduce friction and scratching. The thickness is between 0.01 and 0.02 mm.

Piston roof anodizing
The piston roof is anodized by electro bath, forming thin layer of Al2O3 , This treatment will improve heat resistance (above 500℃), heat conductivity and anti-corrosion, it helps prevent piston roof burn-up. The thickness is normally 0.02 to 0.05mm. If the thickness increases by 0.01mm, the heat conductivity will decrease by 25%, the roof temperature when running will be lower from 30 to 50℃. Anodizing technology and processing is normally complicated.

Piston roof MoS2 Spraying
The function is close to roof anodizing improving heat resistance. The MoS2 is also good at lubrication. (The bigger piston below is piston roof anodizing, the smaller one is MoS2 Spraying)

Phosphate
The phosphate is aimed to improve initial running-in performance. The phosphate layer is easy to wear off and helpful to improve running-in.

Ceramic Spraying
The treatment performance is similar to anodizing and heat insulation performance is better. The ideal thickness is 0.2 to 0.3mm. When running under high temperature, the ceramic is easy to crack and wear off. It is not commonly used due to high cost

UAP NO.	OEM NO.	ENGINE MODEL	NO.CYL	CYL. DIA.	RING SIZE	PIN SIZE	Comp.H
MAZDA
PS-MA-001		A0967	1	60*66.00	1-2.00 2-2.00 3-4.00	16*52	33.00 3.00
PS-MA-002	13419P	B1 NEW	4	68*63.70	1-1.20 2-1.50 3-3.00	19.985*52	31.508 0.70 4.20 5.20
PS-MA-003	0249-99-111 0259-23-200	PB	4	68**74.00	1-2.00 2-2.00 3-4.00	20*56	37.50 4.50
PS-MA-004		T600	2	70*76.60	1-1.50 2-1.50 3-4.00	21.988*60	41.1
PS-MA-005	E101-23-200A	E1 PC	4	70*67.00	1-1.50 2-2.00 3-4.00	20*61	29.00 6.00
PS-MA-006	0268-23-200 0271-23-200	TB 1200	4	70*71.00	1-2.00 2-2.00 3-4.00	20*55	39.00 2.00 3.30
PS-MA-007	0317-23-200	PC	4	70*74.50	1-2.00 2-2.00 3-4.00	20*55	37.00 5.50
PS-MA-008	13045P	B3 NEW	4	71*60.00	1-1.20 2-1.50 3-3.00	19.985*52	28.708 1.50 4.40 5.00
PS-MA-009	B3Y6-11-SAOB	B3Y6	4	71*60.00	1-1.20 2-1.50 3-3.00	20*52	29.30 3.90 8.50
PS-MA-010	B3YO-11-SAO	B3 SILVA FESTIVA	4	71*60.00	1-1.20 2-1.50 3-3.00	20*55	28.70 1.00 4.00
PS-MA-011	0370-23-200	E1300A	4	73*70.50	1-2.00 2-2.00 3-4.00	20*55	37.00 1.50
PS-MA-012	0324-23-200	E1300B	4	73*69.00	1-2.00 2-2.00 3-4.00	20*55	37
PS-MA-013	8034-23-200	TC 1300 B6 323	4	73*64.50	1-1.50 2-1.50 3-4.00	20*55	31.00 1.50
PS-MA-014	0571-23-200 0572-23-200	UA/B	4	75*78.00	1-2.00 2-2.00 3-4.00	22*64	41
PS-MA-015	0107-11-1002 0603-23-200	UA	4	75*78.00	1-2.50 2-2.50 3-4.00	22*64	41
PS-MA-016		ZC	4	75.3*47.00	1-1.00 2-1.20 3-2.50	19.98*61	28.10 3.90 6.00
PS-MA-017	8569-23-200	UC	4	77*62.40	1-1.50 2-1.50 3-4.00	20*65	30.50 1.00 2.50
PS-MA-018	E580-23-200	E580	4	77*61.60	1-2.00 2-1.50 3-4.00	20*65	29.00 2.50
PS-MA-019	E502-23-200	E502	4	77*61.00	1-1.50 2-2.00 3-4.00	20*65	29.00 0.50 2.30
PS-MA-020	E501-23-200	E5	4	77*61.00	1-1.20 2-1.50 3-4.00	20*65	29.00 0.50 2.30
PS-MA-021	E302-23-200/A	E302	4	77*61.80	1-1.50 2-2.00 3-4.00	20*65	29.00 0.80
PS-MA-022	E301-23-200	E3	4	77*61.80	1-1.20 2-1.50 3-4.00	20*65	29.00 0.80
PS-MA-023	ZMYO-11-SAO	ALLEGRO 1.6L	4	78*54.50	1-1.20 2-1.50 3-3.00	19.99*61	31.00 3.70 4.00
PS-MA-024		B6ZE/A	4	78*62.40	1-1.50 2-1.50 3-4.00	20*57	32.00 2.50
PS-MA-025	B6Z7-11-SAO	B6ZE DOHC	4	78*62.40	1-1.50 2-1.50 3-3.00	20*57	32.00 2.50
PS-MA-026	B6Y3-11-SAOA	B6Y3	4	78*62.50	1-1.50 2-1.50 3-3.00	20*61	31.90 2.20 4.50
PS-MA-027	B6BF-11-102	CT75 LIATA	4	78*62.45	1-1.50 2-1.50 3-3.00	20*57	31.85 2.55 3.65
PS-MA-028	B6Z5-11-SAOC	B6Z5	4	78*63.50	1-1.50 2-1.50 3-3.00	20*56	32.20 2.40 2.50
PS-MA-029	B6Z2-11-SAOC	B6Z2	4	78*63.50	1-1.50 2-1.50 3-4.00	20*61	32.20 5.80
PS-MA-030	B6Z2-11-SBOC	B6-T DOHC TURBO	4	78*63.50	1-1.50 2-1.50 3-4.00	20*62	32.20 1.30 4.80
PS-MA-031	PN11-11-SAOB	PN DIESEL	4	78*76.00	1-2.00 2-1.50 3-3.00	25*64	41.20 1.40 2.40
PS-MA-032	B6Y2-11-SAO B6Y2-11-SBX	B6Y2 323BG	4	78*63.00	1-1.50 2-1.50 3-3.00	20*61	32.50 3.00
PS-MA-033	B6Y1-11-SAO	B6Y TX3 13044P	4	78*67.10	1-1.50 2-1.50 3-4.00	20*61	32.00 4.00
PS-MA-034	B6YO-11-SAOA	B6 B1600	4	78*63.10	1-1.50 2-1.50 3-4.00	20*61	32.00 2.00
PS-MA-035	0290-23-200/99-111 3879-23-200 D272-6108A	VB1800	4	78*77.00	1-1.50 2-1.50 3-4.00	22*65	40.00 2.50
PS-MA-036	8170-23-200A	E1600B	4	78*78.00	1-1.50 2-1.50 3-4.00	20*65	28.50 2.50
PS-MA-037	H602-23-200	N1600A NA	4	78*78.00	1-1.50 2-2.00 3-4.00	20*65	38.50 2.50
