Flexible Aluminum LED Tube PCB Board for LED Tube Light
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

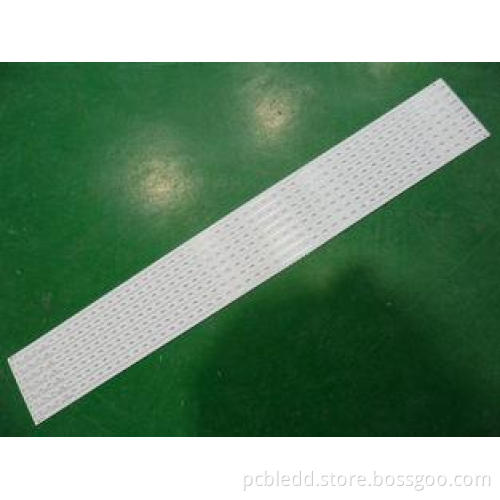

Flexible Aluminum LED Tube PCB Board for LED Tube Light Single Layer
Specifications
Base Material: Aluminum
Layer: 1 layer
Board Thickness: 1.0mm
Board Dimension: 576x10mm,1176x10mm,1476x10mm(it can be customized)
Copper layer: 1oz
Solder Mask: White
Silkscreen: Black
Surface finish: LF HAL
Outline Profile: CNC routing/V-Cut
All of the parameters can be customized!
Applications
T5,T8,T10,T12 LED Tube Light
Lead Time
Samples: 3-4 days
Mass Production: 7-15 days(depend on the quantity)
Payment Terms
T/T,Western Union
Packing and Shipment
Vacuum package in carton
Factory Capability
|
Item |
Manufacturing Capability |
|
Surface Treatment |
OSP |
|
PCB Layer Type |
Single side,Double side |
|
Max. Working Panel Size |
1500mm*600mm |
|
Min. Working Panel Size |
4mm*4mm |
|
AL Substrate Thickness |
0.3mm-4mm |
|
Min. Conductor width |
0.15mm |
|
Min. Conductor spacing |
0.15mm |
|
Min. Drilling hole size |
0.2mm |
|
Plate Thickness Tolerance |
±0.1mm |
|
Finished Panel Tolerance |
±0.1mm |
|
V-CUT Alignment |
±0.1mm |
|
Hole Dia Tolerance |
±0.05mm |
|
Hole Position Tolerance |
±0.076mm |
|
Finished Copper Thickness |
35um-105um(1oz-6oz) |
|
Etching Under Cut |
>/=2.0 |
|
PTH&Panel Plating Uniformity |
>90% |
|
Eing/Flash Gold Thickness |
1-5u’’ |
|
Solder Mask Thickness |
15um-35um |
|
Min. Solder Mask Bridge |
0.076mm(3mil) |
|
Silk Screen |
White/Black(depend on your requirements) |
|
Thermal Conductivity |
1.0~20W/MK |
|
Withstand Voltage |
AC 2000V,DC 1500~4000V |
JHD PCB would like to be your reliable partner in near future!
