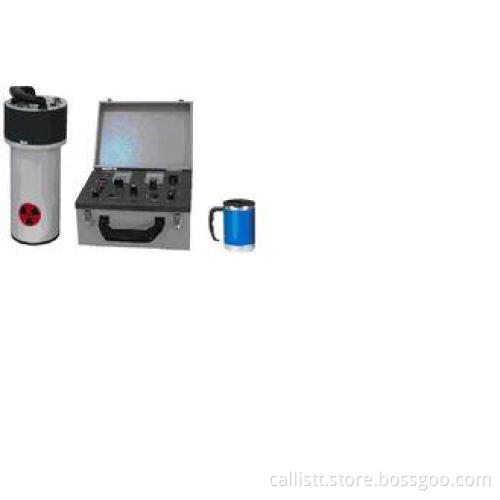

High Frequency X-Ray Flaw Detector Small Focus Point With PWM Technology HX Series
HX series of high-frequency micro-X-ray Flaw Detector Using PWM Technology, applying of high-power MOSFET or IGBT fully controlled system successfully developed a new generation of high-frequency micro-X-ray apparatus, it is totally different with the traditional Power frequency and frequency conversion X-Ray flaw detectors. They are updated products of X-Ray will be widely used in future.
Features:
●There is no need to special protection. When use it just keep away from the X-Ray emission window. It is safe for the operator the value will not exceed the safe dose limits.
●Due to the high frequency (20Khz ~ 3Mhz), compact structure, small size, light weight, the machine only has a few kilograms not more than ten kilograms. It is convient to carry to the site also it can work at height or confined areas.
●With small focus(0.2-0.5mm) and the high sensitivity of the transillumination the images are clarity.
●Using a wide range of power, the 220v50Hz power can be used directly, any DC 24V15A power, battery or lithium battery can be used. The factory can be equipped with lithium rechargeable battery 24V15A according to user requirements.
●High-frequency micro-X-ray tube voltage detection machine instructions directly from the anode, the anode voltage sampling and PWM modulator to compose anode voltage regulator, the tube voltage is very stable.
●The machine can Detect the pulse one by one, good interference resistance, low failure rate, stable and reliable.
●Using high-frequency pulse circuit, easy-to-digital, convient to connect with PC. It can be used for continuous detection and X-ray real-time imaging of continuous monitoring
Detailed product information:
|
Per |
Power Supply |
Frequency |
kV |
mA |
Focus size(mm) |
Power Rating |
Penetration(mm) |
Generator (kg) |
Directional radiation Angle |
||
|
AC
|
DC |
Al |
Steel A3 |
||||||||
|
HX-60 |
220V/50Hz |
+18V/12A |
50KHz |
20-60 |
0.2-1 |
0.1X0.1 |
60 |
40 |
|
5(oil) |
40°x50° |
|
HX-80 |
220V/50Hz |
+24V/15A |
50KHz |
20-80 |
0.2-1 |
0.2X0.2 |
80 |
60 |
5 |
5(oil) |
40°x50° |
|
HX-100 |
220V/50Hz |
+24V/20A |
50KHz |
40-100 |
0.2-1 |
0.2X0.2 |
100 |
80 |
7 |
5(Gas) |
40°x50° |
|
HX-120 |
220V/50Hz |
+32V/15A |
50KHz |
60-120 |
0.2-1 |
0.3X0.4 |
120 |
90 |
12 |
6.5(Gas) |
40°x50° |
|
HX-160 |
220V/50Hz |
|
50KHz |
60-160 |
0.2-1 |
0.5X0.5 |
160 |
120 |
16 |
7.5(Gas) |
40°x50° |
Detailed application:
- Electronic part such as welding point on the mainboard,cable line.
- Medical area: fish bone
- Agricultures: pine seed
- Aero space: thin wall welding
- Power cable
