china P6 Indoor Rental Led Screen Display SMD 3in1 for events
2011 Asian cup LED supplier
1. CE & RoHS certificate
2. 36 months warranty, life long free tech-support
3. Wide visual angle, smooth surface
4. Excellent contrast ratio, high resolution
5. Perfect uniformity, no mosaic
6. Light weight, easy to installation
7. Built-in gear for gap adjustment.
Option item: SBO-P10, P12, P16, P20, P25, P31.25 (Outdoor models)
SBI-P4, P5, P6, P7.62, P8, P10, P12 (Indoor models)
Application:

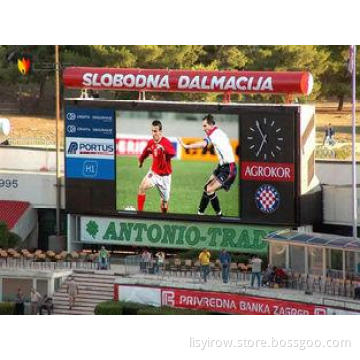

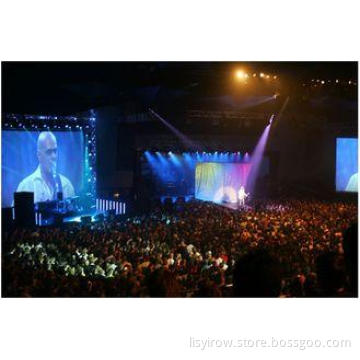

Commercial advertising, Stadium perimeter, mobile media, night club, entertainment events, business establishments;
Advantage:
1. High Contrast ratio: 4000:1
2. First-class LED chip:
3. Clear vivid image quality:
4. Long life time of more than 70, 000 hrs.
5. Easy Installation & Operation
|
SBI-P6 (Pitch 6mm indoor full color-1/8 scan) |
|
|
Technique |
SMD |
|
Pixel structure |
1R1G1B 3in1 |
|
Pixel pitch |
6mm |
|
Pixel density |
27, 777 dots/㎡ |
|
Luminance |
2, 000cd/㎡ |
|
Module dimension |
192mm(W) * 96mm(H) |
|
Module resolution |
32 pixel(W) * 16 pixel mm(H) |
|
Cabinet dimension |
768 * 576mm |
|
Cabinet resolution |
128 * 96 |
|
Cabinet area |
0.442 sq.meter |
|
Optimal visual distance |
>6m |
|
Visual angel |
140 degree (H/V) |
|
Max power consumption |
≤1100w / ㎡ |
|
Average power consumption |
≤600w / ㎡ |
|
Brightness adjustment |
Adjust according to the environment |
|
brightness software (0%-100%adjustable) |
|
|
Gray scale |
point by point 4096 gray grade levels of? |
|
each color, 16 bits γ correction available |
|
|
Drive mode |
1/8 dynamic scan, constant current |
|
Frame frequency |
≥60HZ |
|
Refresh frequency |
≥1000HZ |
|
Input voltage |
AC 90~260 volts |
|
Operation temperature |
﹣40℃~ +60℃ |
|
Operation humidity |
10%~90% |
|
Input signal |
S-video, RF, RGB, Yuv, YC, composite… |
|
Control system |
DVI card + master control card + receiver card |
|
MTBF |
>5000 hrs |
|
Life span (50% brightness) |
100, 000 hrs |
|
Malfunction dot rate |
1/10000 |
|
Ingress protection rate |
IP31 |
|
Cabinet material |
Epoxy paint coated, aluminum / iron |
|
Application: |
Rental / Permanent installation available |
