Home IR Bullet Cameras 1/4 Inch High Resolution , Infrared
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|
Product Description
Product Description

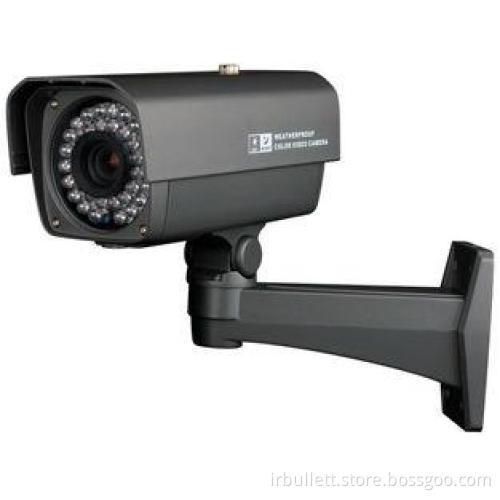

Home IR Bullet Cameras 1/4 Inch High Resolution , Infrared Security Camera
Quick Detail:
1. Special Features:Weatherproof/High definition/Wall mount supported/Real time transmission
2. Waterproof Level: IP66
3. White Balance:Auto(indoor/outdoor)
4. Application:Family,office,residential,factories etc.
2. Waterproof Level: IP66
3. White Balance:Auto(indoor/outdoor)
4. Application:Family,office,residential,factories etc.
Main feature:
- 1/3"Sony 673 CCD
- Weatherproof camera
- 750TVL high resolution
- Support 3D-NR,E-Zoom,D-WDR,DIS function
- Support UTC/RS-485 communication
- Support ICR filter
- Built-in OSD
- 36pcs LEDs
- 3.5-16mm Megapixel varifocal lens
- DC12V
Specification
| Model No. | HKR-31336HVX |
| Imaging Sensor | 1/3” Sony 673 CCD |
| Total Pixels | N:1028(H) × 508(V); P:1028(H) x 596(V) |
| Scanning system | 2:1 Interlace |
| Resolution | Max 700 TV lines in color @ HR 7 mode (750TV lines in B/W @ HR 7 mode) |
| Min. illumination | Color : 0.3 lux , BW : 0.1 lux |
| Color DSS : 0.0005 lux , BW DSS : 0.0002 lux, IR ON: 0.00lux | |
| S/N Ratio | More than 50dB (AGC off) |
| VIDEO OUTPUT | 1.0 Vp-p (75 ohm, composite) |
| LENS | 2.8-12mm Megapixel varifocal lens |
| LED | 36pcs |
| OSD | Yes |
| BRIGHTNESS | 0 ~ 255 steps |
| SHUTTER SPEED | N:1/60 ~ 1/100,000 sec; P:1/50 ~ 1/100,000 sec |
| SENS-UP | Off/Max X2/Max X4/Max X8/Max X16/Max X32/Max X64/Max X128/Max X512 |
| AGC | ON/OFF |
| DAY&NIGHT | DAY/NIGHT/AUTO |
| WHITE BAL. | ATW / Push / USER1 / USER2 / Manual / PUSH LOCK |
| DNR | LEVEL 0 ~ 6 |
| SHARPNESS | 0 ~ 15 steps |
| MIRROR | Off / V / H / H&V |
| D-WDR | WDR1/WDR2/OFF |
| PRIVACY | 1~16 ZONE |
| MOTION | ON/OFF |
| Power | DC12V±10% |
| Operating Temperature | -10℃ ~ +50℃ (Humidity : 0%RH ~ 80%RH) |
| Storage Temperature | -20℃ ~ +60℃ (Humidity : 0%RH ~ 90%RH) |
| Dimension | 310mm(D)X225mm(L) |
|
Weight |
1800g |
DIMENSIONS
