Warm White LED Bluetooth Speaker Light Bulb B22 E27 E26 For Home / Office

Item instruction:

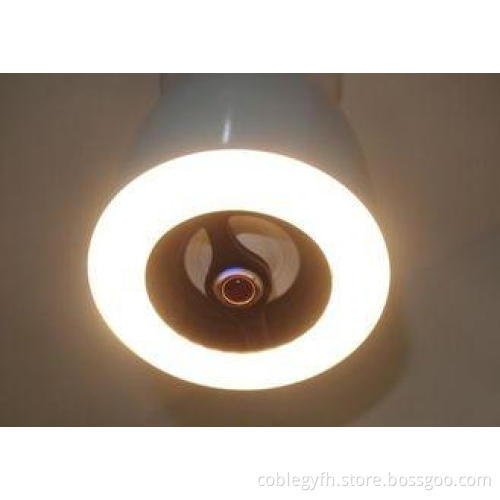

The model AG-0505A of LED lighting with Bluetooth audio combines LED energy saving lighting

and sound technology together. The outer ring is the ring luminescence band,which can brighten

the light of warm white or cool white. A small-caliber and high-powered full-range speaker is located

in the middle area, and music player rise well. Bluetooth audio receiver is suitable for all kinds of

products with Bluetooth, such as mobile phone, MID, notebook etc.Specifications:

Quick Detail:

1: combing light with speaker

2: Bluetooth receiver (suitable for every brand’s phone, MID, Notebook)

Description:

2.ID chart illustration E27/E26/B22

2.2 Each package contains a host of LED lighting with Bluetooth audio, an infrared remote control, manual and warranty card;

2.3 Open the box, and remove the host and the remote control;

2.4 Before installation, turn off the power, and then screw the host of the product into lamp holders. LED light source turn on after around 3 seconds turning on the power, then the brightness in the brightest state.

2.5 All control functions can be carried out upon the remote control. The insulating film in the battery compartment of
remote control is removed (to prevent battery drain) when the remote control is in working condition.

2.6 The key “ ” is power switch. Press the key “ ”, the host is in standby mode when the remote control indicator is on and the amplifier & LED light are off; Again press the key “ , the host is in working condition when the remote control indicator is off and the amplifier & LED light can be used normally.

2.7 The green key “ ” is the switch of the amplifier. When the amplifier is open, press the key “ ”, it will be shut down, the speaker can not make a sound and remote control indicator flashes once; again press the key “ ”, the amplifier will be opened, the speaker makes sounds and remote control indicator flashes another once.

2.8 The blue key “ ” is the switch of LED light. When the LED light is on, press the key “ ”, LED light will be off, the remote control indicator flashes once; Again press the key “ ”, the LED light will be turned on, remote control indicator flashes another once.

2.9 The key “VOL+” and “VOL-“are the functional ones to control the volume of the amplifier. When the sound turns on, pressing the key “VOL+” or “VOL- “ can increase or decrease the volume, the remote control indicator flashes once Double pressing (press the key and hold) the key “VOL+” or “VOL- “, can continuously adjust the volume to increase and decrease when remote control indicator is blinking. The key “VOL+” or “VOL- “doesn’t have any effect when the audio is off.

2.10 The key “ADJ+” and “ADJ-“are the functional ones to control the brightness of LED light. When the LED light is on, press the key “ADJ+”, the illumination is increased and remote control indicator flashes once; Press the key “ADJ-“, the illumination is decreased and remote control indicator flashes another. The key “ADJ+” or “ADJ-“doesn’t have any effect when the light is off.

2.11 The key “BT PAIRING” is the Bluetooth paring one. Bluetooth pairing and connection operations are as follows:

2.11.1 Bluetooth pairing: When the amplifier is open, press the key “BT PAIRING”, you can hear “beep-beep”, and see the Bluetooth pairing indicator (blue) “fast flashing”, that is entering the search for Bluetooth devices; Turn on the Bluetooth device of mobile phone, iPhone or MID products to enter the Bluetooth search state and select the matching after finding “speak & lamp” (some Bluetooth devices need to enter the password:“0000”), then you can hear “beep” and see the Bluetooth pairing light (blue) “slow shiny”, that means that the pairing is complete.

2.11.2 Bluetooth connection: To select the functions of connected devices to connect into the paired Bluetooth device (mobile phone, iPhone or MID products), you will hear the “beep” tone when successful; A different Bluetooth device will send a different tone; Paired Bluetooth devices do not need matched again with

2.11.1 directly manipulated.

2.11.3 Play music: For the Bluetooth devices with successful connection (mobile phone, iPhone or MID product), the music will be played from the AG-0505A speakers.

3 Instructions of use

3.1 This product is suitable for the areas of grid voltage 90-240V AC.

3.2 The host interface of the product uses internationally accepted E27/E26 standard.

3.3 The installed distance from the ground is more than 2.2M, and the maximum less than 4M.

3.4 The distance of Bluetooth transmission is greater than 10M (when no obstacles).

3.5 Infrared remote control distance is greater than 10M, 360° remote control without dead space (host installation testing height 3M).

3.6 The host is in low power state when the host is remote shutdown, in line with environmental protection requirements. When unused for long periods, please turn off the line switch.

3.7 This product has perfect protection function. When the ambient temperature is too high or the power grid surge is too sharp, the host will enter protection automatically, and the machine is in standby. This is normal, and it just needs simply press the key” ” to restart.

4.Technical indicator

Applications:

Apply in home, bedroom, shops, office, clubs, outdoor, camping and so on.

Packaging Details:

Inside package

neutral package:10*10*18.5CM

Net weight: 0.25KG

Gross weight: 0.4KG

Outsied package:53*43*40.5CM
