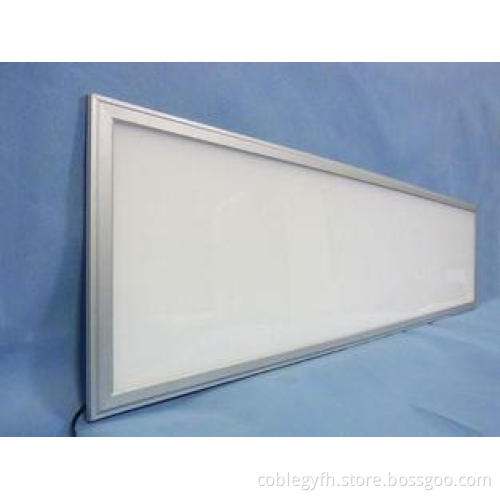

IP20 Waterproof 1196*296mm Flat Panel Led Light 36W For Off

IP20 Waterproof 1196*296mm Flat Panel Led Light 36W For Office , Home 2750 - 3250K

Quick details

1 .Using self-packaged LED as the light source. This light select high imports of semiconductor chips,
with the feature of high thermal conductivity, small optical decline, pure light color, no ghosting;

2.The LED directly close with the shell, it can scatter heat through the shell and air convection, the
shell using aluminum alloy die-casting, the lamp can be effectively scatter heat and ensure the light
source life. The perfect combination of 5mm tempered glass with high-intensity lights make the lamps
can be using at high-humidity environment;

3. The body using anti-aging sealed silicone rubber, the surface of lamp have done the anodic oxidation
and the spray treatment.

Description

Our company R & D and produce the high brightness LED light, use of high-purity aluminum radiator
shell, high efficiency constant current power supply.
Operating Environment:
Input Voltage: AC 100 ~ 240V 50/60 HZ
Operating Temperature : -20 ~ +40 ℃
Storage Temperature : -30 ~ 45 ℃
IP Class: IP20

Advantages:

1. Start without delay, It can reach the normal brightness when connect the power and no need waiting,
switching frequency can be up to millions of times more;

2. Install fast, flexible, the beam angle can be adjusted to 100 degree and 50 degree, used widely;

3. Green product: cool light source design, non-thermal radiation, pollution elements, achieve the green
environmental protection and energy-efficient in the true meaning;



Dimensions


Specification

Note: Different color temperature of the LED optical property have
deviation value≤5%

Package

packing size & weight

Packing Diagram



Installation

Installation note

Do not forget to cut off the power and make sure that the installation board can bear the weight of the
light
● Make sure the right way of installation in case of falling off
● Do not use it in the place where the corrosive air exists
● Do not cover anything on the light
● Remember to connect the earth wire for safety
● 2 year warranty begins the date you buy it
● If in the event of failure caused by disassembling, renovating or improper installation, it’s not in the
range of warranty.

Application

It can be used in indoor lighting, office lighting, home lighting, shop lighting etc.
