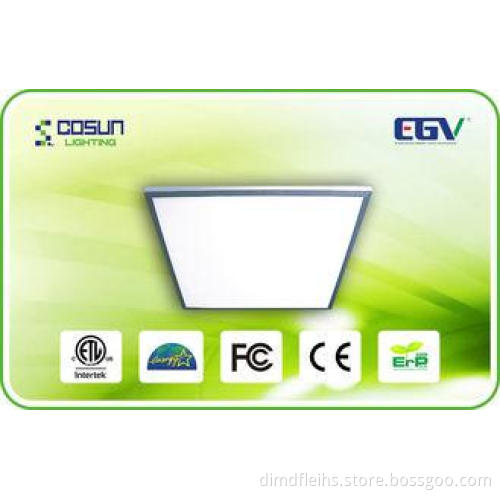

12W High Brightness Dimmable LED Panel Light For Office , 125° Snap-In LED Panel Lighting
Quick Detail:
1.Certificates:CE,Energy Star,FCC,ERP
2.Light Source:SMD3528
3.Operation Temp.:-20~50℃
4.OEM:Yes
5.Wattage:12W
6.IP Rate:IP50
7.Frame Color:polished sliver
8.Life Span:>40,000
9.ODM:Yes
10.CCT :3500~6500k
11.Power Factor:>95%
12.Lumens:1275~1530lm
13.CRI:>80
14.Beam Angle:125°
Description:
* Aluminum with high quality laser dotted guide panel light
* Super size accept customized
* CRI>80
* Beam angle is 125°
* Up to 80% energy saving
* Instant star, no flicking, no humming
* No RF interference
* Environmentally friendly, mercury and lead free
Applications:
1.Meeting room, conference room,communication office
2.office, gallery and home
3.Commercial environment, real estate, commercial building,Airport
4.Shopping mall, super market,chain shops, shops, hotel, restaurant
Specifications:
|
Model |
EGV-3030 |
EGV-3060 |
EGV-6060 |
EGV-3012 |
EGV-6012 |
|
Dimensions(mm) |
295x295mm |
295x595mm |
595x595mm |
295*1195mm |
595*1195mm |
|
Thickness(mm) |
11mm |
||||
|
Main Material |
AL+PMMA |
||||
|
Light Source |
SDM5730 |
||||
|
LED Qty(pcs) |
75/90pcs |
90/120pcs |
180/240pcs |
180/240pcs |
300/360pcs |
|
Input Voltage(v) |
AC100-277V,50-60HZ(UL);AC100-240V,50-60HZ(CE) |
||||
|
Rated Current(A) |
|
|
1A |
1.25A |
1.5A |
|
Output Voltage(v) |
|
|
27/42V |
20V |
27/42V |
|
Watts(w) |
15/18w |
18/24w |
36/48w |
36/48w |
60/72w |
|
Lumens(lm) |
1275/1530lm |
1530/2040lm |
3060/4080lm |
3060/4080lm |
5100/6120lm |
|
Power Factor |
>90% |
||||
|
Color Temperature(k) |
3500-6500k |
||||
|
Luminous Efficiency |
80-85 |
||||
|
CRI |
>80 |
||||
|
Beam Angle |
125° |
||||
|
Life Span |
>40,000h |
||||
|
Operation Temp. |
-20~50℃ |
||||
|
IP Rate |
IP50 |
||||
|
Way To Install |
Lifting,Flat,Embedded,Snap-in |
||||
Competitive Advantage:
1.Make the light more brightness
With the high quality optical laser guide panel which material is Mitsubishi and Degussa,
making it effectively protect the picture against fading.
2.Super size,more options
Except standard size 300*300, we also have
600*600,300*600,300*1200,600*1200,also customized super size can be 1200*2400mm.
3.Saving energy with Certificates
Low consumption, environment-friendly, has approval with CE, Energy Star,FCC, ERP,suitable for
Europe and America market.
