Product Description

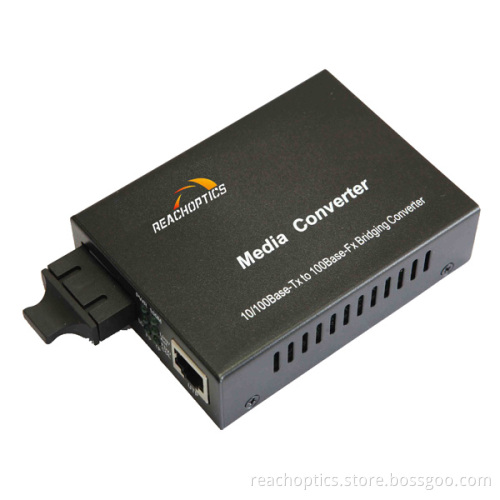

RM-11 series Ethernet media converter

10/100M Media Converter

Features

10/100Mbps auto-sensed, facilitating network upgrade
Built-in efficient switching core to implement flow control and reduce broadcast packets
Full-duplex and half-duplex auto-sensed
Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
Supporting Link Failure Alert (LFA) with optional dip-switch(unique)
Supporting half /full-duplex of FX and link failure alert with optional dip-switch
Supporting 10/100Mbps store-and-forward and 100Mbps cut-through ?transmissio?with optional dip-switch(unique)
Supporting low-timelag transmission
Supporting the transmission of extra-long packets up to1600 bytes and VLA ?packets
Supporting Quality of Service (QoS) , ensuring the transmission of VoIP packets
Supporting STP to form a redundant network
?Extremely low power consumption (less than 2W), low heat, reliable and ?stable?performance, and long lifetim

Application

10/100Mbps fast optical Ethernet long-distance transmitting network

Description

RM-11 series Ethernet media converter can interconvert electrical signals of 10Base-T and 100Base-TX twisted pairs with optical signals of 100Base-FX. It extends the network transmission distance from 100m via copper cables to 120km via fiber optical cable. It enables the data to transmit in two different mediums of electrical and optical networks either by the technology of data link L2 store-and-forward, or by the one of PHY L1 cut-through). It supports transmission in multi-mode dual fiber, single-mode dual fiber, single-mode single fiber.

Technical Indexes

Parameter	Specifications
Access Mode	10/100Mbps
Standard	IEEE802.3 10Base-T, IEEE802.3u 100Base-TX ,100Base-FX ;
Wavelength	Mulitmode:850/1310nm; Single-mode:1310/1550nm (Option)
Distance:	Category-5 twisted pair: 100m Fiber:multi-mode 50/125,62.5/125μm(the max distance up to 2km or 5km Fiber:Single -mode 8/125,8.7/125,9/125,10/125μm(the max distance up to 20 -120km
Port	One RJ45 port: For connecting STP/UTP category-5 twisted pairs One optical port: Multi-mode, dual fiber: SC or ST (50, 62.5/125μm) Single mode, dual fiber: SC or FC (9/125μm) Single mode Single fiber: SC or FC (9/125μm)
Conversion means	Media conversion, store-and-forward/cut-through
MAC address table	1K
Buffer space	1Mbit
Flow control	Full duplex: flow control; Half duplex: back pressure
Delay	Store-and-forward: 9.6μs; cut-through: 0.9μs
BER	<19-9
MTBF	100,000 hours
LED indicator	PWR (power supply); FX LINK/ACT (optical link/action) FDX (FX full duplex), TP LINK/ACT (twisted pairs link/action) TP 100 (100M transmission rate of twisted pairs), FX 100 (100M transmission rate of optical fiber)
Power supply	DC5V 1A (external), AC220 0.5A/DC-48 (internal)
Power consumption	<2W
Operating temperature	-10~55oC
Operating humidity	5%~90%
Maintaining temperature	-40~70oC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions	External power supply: 26mmx 71mm x 94mm Built-in power supply: 40mm x 110mm x 140m

Ordering Information

Part Number	wavelength	Fiber	TX port	Fiber Mode	TX power (dBm)	RX Sen. (dBm)	Distance
RM-1100-02	850/1310nm	SC/ST	RJ-45	MM,Duplex	-22 to -12	≤-30	2km
RM-1100-L2	1310nm	SC/FC	RJ-45	SM, Duplex	-15 to -8	≤-37	20km
RM-1100-L4	1310nm	SC/FC	RJ-45	SM, Duplex	-8 to -3	≤-37	40km
RM-1100-L6	1310nm	SC/FC	RJ-45	SM, Duplex	-3 to 0	≤-37	60km
RM-1100-L8	1550nm	SC/FC	RJ-45	SM, Duplex	-8 to -3	≤-40	80km
RM-1100-10	1550nm	SC/FC	RJ-45	SM, Duplex	-3 to 0	≤-40	100km
RM-1100-12	1550nm	SC/FC	RJ-45	SM, Duplex	0 to 3	≤-40	120km
RM-1100-L2A	T1310/R1550	SC	RJ-45	SM,BI-DI	-13 to -8	≤-36	20km
RM-1100-L2B	T1550/R1310	SC	RJ-45	SM,BI-DI	13 to -8	≤-36	20km
RM-1100-L4A	T1310/R1550	SC	RJ-45	SM,BI-DI	-8 to -3	≤-36	40km
RM-1100-L4B	T1550/R1310	SC	RJ-45	SM,BI-DI	-8 to -3	≤-36	40km
RM-1100-L8A	T1310/R1550	SC	RJ-45	SM,BI-DI	-5 to -3	≤-36	80km
RM-1100-L8A	T1550/R1310	SC	RJ-45	SM,BI-DI	-5 to -3	≤-36	80km
