High Strength Disc Sintered Cast Alnico Magnet For Precisio
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

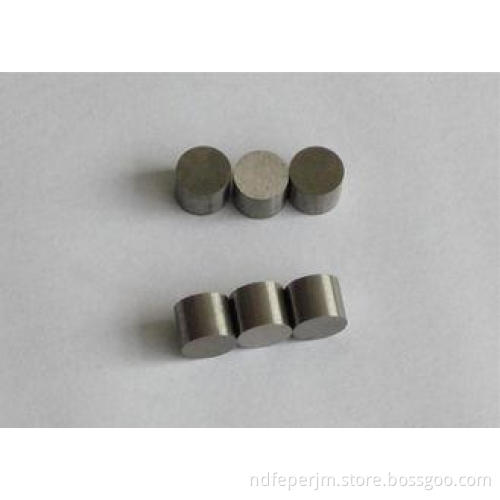

Disc Cast Alnico Magnet For Precision Apparatus
Quick Detail:
Composite: AlNiCo Magnet
Grade: AlNiCu 5-AlNiCu 9
Technology: Sintered magnet and casted magnet
Shape: Cyl,Block,Ring and Strips,Bars or customized
Working Temperature: Max 500 degree
Description:
AlNiCo magnet is mainly composed of Aluminum, Nickel and Cobalt. Its excellent temperature stability (up to 500 degrees Centigrade), low Br. temperature coefficient, good resistance to demagnetization from vibration and shock, high residual density and magnetic stability. Alnico material can be the cast or sinter type. Cast AlNiCo has a high capability and sintered AlNiCo is easy to machine into various forms.
Application:
AlNiCo magnet is widely used to generator, lifting equipments, microphone, measuring instruments and many other fields.
Specification:
|
Grade |
Br (mT) |
bHc (KA/m) |
BHmax (MGOe) |
Density (g/cm3) |
Br.Temp. Coefficient (%/℃) |
Curie Temp.(℃) |
Remarks |
|
LN9 |
680 |
30 |
1.13 |
6.9 |
-0.03 |
760 |
Isotropic |
|
LN10 |
600 |
40 |
1.2 |
6.9 |
-0.03 |
760 |
|
|
LNG12 |
720 |
45 |
1.55 |
7 |
-0.03 |
810 |
|
|
LNG13 |
700 |
48 |
1.6 |
7 |
-0.03 |
810 |
|
|
LNG34 |
1200 |
48 |
4.3 |
7.3 |
-0.02 |
860 |
Anisotropic |
|
LNG37 |
1200 |
48 |
4.65 |
7.3 |
-0.02 |
860 |
|
|
LNG40 |
1250 |
48 |
5 |
7.3 |
-0.02 |
860 |
|
|
LNG44 |
1250 |
52 |
5.5 |
7.3 |
-0.02 |
860 |
|
|
LNG52 |
1300 |
56 |
6.5 |
7.3 |
-0.02 |
860 |
|
|
LNGT28 |
1000 |
58 |
3.5 |
7.3 |
-0.02 |
860 |
|
|
LNGT36J |
700 |
140 |
4.5 |
7.3 |
-0.02 |
860 |
|
|
LNGT32 |
800 |
100 |
4 |
7.3 |
-0.025 |
860 |
|
|
LNGT40 |
800 |
110 |
5 |
7.3 |
-0.025 |
860 |
|
|
LNGT60 |
900 |
110 |
7.5 |
7.3 |
-0.025 |
860 |
|
|
LNGT72 |
1050 |
112 |
9 |
7.3 |
-0.025 |
860 |
|
|
LNGT80 |
1100 |
115 |
10 |
7.3 |
-0.025 |
860 |
Competitive Advantage:
With excellent temperature stability
Various sizes and shapes made
High working temperature
