Solid Stainless Steel Portable P12.5 LED Dance Floors for C
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Solid Stainless Steel Portable P12.5 LED Dance Floors for Concert Background 6400 (dot/m2)
Specifications:
|
Specifications of P12.5 Floor Display |
|
|
Catalog |
UC-IF-P12.5BR |
|
LED encapsulation |
SMD 3 in 1 |
|
Pixel pitch(mm) |
12.5 |
|
Module size(mm) |
400*200 |
|
Module resolution |
32*16 |
|
Pixel configuration |
1R1G1B |
|
Pixel density (dot/ m2) |
6400 |
|
Best viewing angle |
H: 140° |
|
V: 140° |
|
|
Max. power consumption (W/ m2) |
≤1000 |
|
Luminance (CD/ m2) |
≥700 |
|
Driving mode |
1/8 Scan, Constant current |
|
Working voltage |
AC 220V/50HZ |
|
Working environment |
Temperature: ﹣40℃~ +60℃; Related humidity: 10%~90% |
|
Grey scale / color |
4096 grades for R, G and B; Display ≥16.7M colors (synchronized) |
|
Brightness adjustment |
Manual adjustment: 256 levels, Automatic adjustment: 8 grades |
|
Control system |
Synchronous / off-line control system and Network Cable or optical fiber transmission |
|
MTBF |
＞10000 hours |
|
Life-span |
＞100000 hours |
Advantage & Applications:
1. Easy installation: it has quickly became the industry standard for lightweight, portable video display because of its low-profile, fan-fold capability for rapid deployment and transportation.

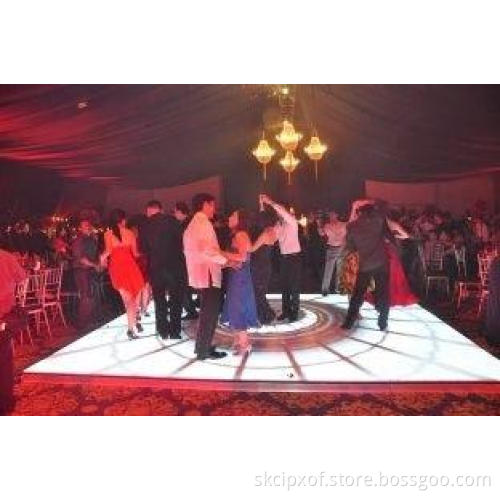

2. Wonderful concert effect: it can reveal virtual scenes and abstract dream effect, used widely in concert background.
3. Good locking structure: Each panel has locking holes for a fix with each other. And the panle is made by steel very tough.
Lock head in stainless steel that is simple to handle and solid.
Description:
Uocolor P12.5 indoor full color LED display (LED Mesh display) is a multi-media LED display system applied in indoor
occasion with many characteristics: wide display acreage, high resolution, bright color, abundant and vivid display content, quick response, low deficiency rate, which are broadly applied in indoor environment such as city hall, concert stage, nightclub, railway station and car waiting room, luxurious office, factory and enterprise etc.
