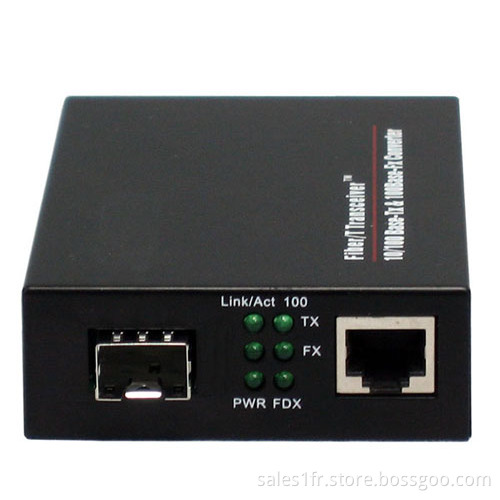

10 / 100Mbps Fiber Optic Media Converter , SFP To RJ45 Converter

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

10 / 100Mbps Fiber Optic Media Converter , SFP To RJ45 Converter

High Reliability 10 / 100M Fiber Optic Media Converter Networking of SFP to RJ45
Auto-adaptation 10Mbps and 100Mbps, convenient for network updating.
With distinct IC IP113 HIC solution, low-temperature-rise chip, no need of cooling system, realization of flow control, decrease of broadcast storm.
With famous brand optical-electronic-integration module providing excellent optical and electrical properties to ensurereliable data transmission and long working life﹡Speed 10/100M.
Supporting broadcast filtering, address auto-learning and auto-updating, and store-and-forward operating mechanism.
Supporting full-duplex flow control or half-duplex back pressure working pattern, along with Auto-negotiation.
Single RJ-45 electrical port NIC/HUB, auto cross-identification, link to computer network cards or switches or HUB.
Supporting the switches to choose between 10/100Mbps store-and forward and straight-through transmission pattern(distinct).
Supporting 1600byte super data packet transmission.
Providing indicator lamps for link-loss, electrical and optical link diagnosing, dynamic data transmission and full/halfduplex, data rate
With more than 50, 000 hours MTBF, complying with telecom operating standard.

Technical Parameter Description:

Technical Parameter:
Standard:	IEEE802.3 , IEEE802.3u, IEEE802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1d
Conversion Method:	Media Conversion, Store-and-Forward/straight through
MAC Address Table:	1 K
Buffer Size:	1Mbit
Flow Control:	Duplex : flow control ; Half duplex : back pressure
Time Delay:	Store-and-Forward : 9.6us , Straight-through : 0.9us
BER:	<1/1000000000
LED Indicator Lamps:	TP 100 , FX 100 , FX LINK/ACT, TP LINK/ACT, , FDX, POWER
Power Supply:	DC5V 1A (external power)
Power Dissipation:	<2.5W
Operating Temperature:	0 ~ 50 ℃
Humidity:	5%~90%
Storage Temperature:	-40~ 70 ℃
Dimension:	25mm (H)* 70mm (W)* 93mm (D)

Order information:

Model No.	Description
FR-1101SFP	10/ 100M SFP Media Converter
