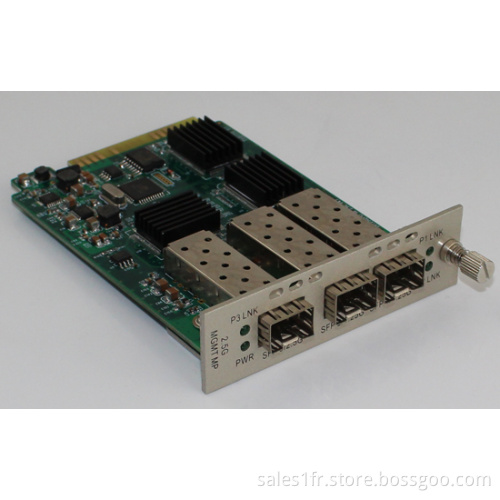

Gigabit Managed Optical Protection Media Converter for P2P Mode

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

KEY Functions:

FX port with 1+1 automatic protection switching,switching time will less than 30ms
Rack-Mountable
Supports hot plugging
Support 16-slot Rack management
Powerful Network Management function(Web,SNMP,Console)
Full State Led display
Easy installation
Fiber Port Supports functions monitoring for SFP modules
Fiber Port Supports Standard SFP modules port

Technical Information:

Performance Data	Technical Indexes
Equipment function	Media Converter
Transmission Speed	1.25Gb/s
Access Type	1.25G LAN/ 1.25G WAN
Interface Type	Type: 1SFP to 2SFP (backup protect)
Transmission Distance	SFP module: Up to 80Km
Network management information:	• Card type information • SFP fiber module detection • SFP fiber module DMI function ( Temperature , Voltage , Optical power ) • Link status detector • Remote card's status monitor ( only in pairs )
power requirement	Rack-mountable : AC 85 ~ 220V OR DC -48V Standalone: AC 220V OR DC -48V Power consumption: ≤ 5.5W
Work Environment	Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% ( non-condensing )
Dimension	Card : 11.5mm ( W ) × 78mm ( D )× 26mm ( H )/87.3GS (NET WEIGHT) Standalone :156mm ( W ) × 128mm ( D ) × 32mm ( H )/ KGS (NET WEIGHT)

MAIN APPLICATIONS

This equipment is an optical transmission equipment for P2P mode, This is 1.25 Gb/s optical transmission equipment ,can realize the optical line 1 + 1 redundancy protection in point-to-point mode, it can provide Optical Port automatic protection switching. To realized 1* 1.25G or 1*155M SFP data to 2 Port 1.25 Gb/s optical Port for long distance transmission.
The equipment support 2 Fx port with a hot-swappable SFP slot;
This device uses a centralized management platform to monitor and manage the device, it is very convenient. Also supports SNMP.
This equipment is high integration, low power consumption, stable performance, easy installation, can be widely used in telecommunications, electricity and financial industries.
