Customized Off grid / Residential 3KW Maglev Wind Generator
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen, China |
|---|
Customized Off grid / Residential 3KW Maglev Wind Generator in Red , Blue
1. Quick Detail
- Name :CXF-200w , 300w , 600w , 1000w , 3000w Vertical Axis Maglev Wind Generator
- Applications : Off grid, grid-tie, residential and commercial, street lights, telecoms BTS and etc.
- Colour:Red & blue, Sliver and customrized colour
2. Descriptions:
Please kindly be noted that TYPMAR changed its company name from Shenzhen Timar Scenery Technology Co., Ltd. to Shenzhen Typmar Wind Energy Technology Co., Ltd. The new registered logo "Typmar" replaced iIts initial logo "Timar".

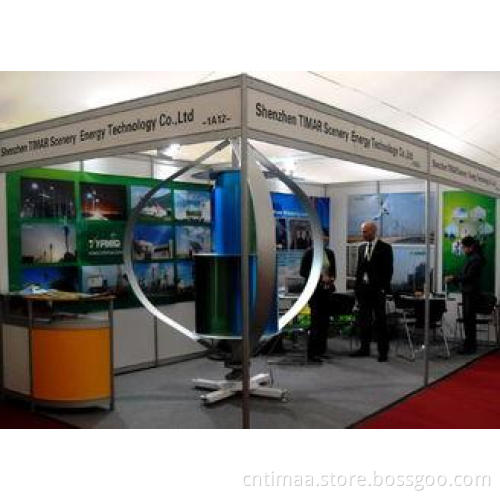

CXF Series of Vertical Axis Maglev Wind Turbine is a breakthrough in wind power technology. It’s Typmar who made magnetic levitation technology used in wind turbine for the first time. This creates a milestone and fulfills important breakthrough in the history of small and medium wind turbine development. The maglev technology improves the efficiency of wind power 35% compared to traditional horizontal axis wind turbine. The innovative wind generators have been widely used for Telecoms Base Receiver Station (BTS) as well as residential and commercial applications.
3. FAQ
a. Is Typmar a manufacturer or trading company?
We are a professional manufacturer, not a trading company. It’s TYPMAR who firstly invented maglev vertical axis wind turbine. We have USA patent (USD 647,477S ) and EU Patent (NO001721416-0001).
b. Is the maglev wind turbine expensive?
Yes, it is more expensive than HAWT because of solid and durable materials, but it has higher power effficiency and longer lifespan than HAWT.
c. What is benefits of VAWT in comparison to a traditional horizontal axis wind generators.
- Magnetic levitation technology
- Independent of the direction of the wind
- Higher efficiency than the propeller blades
- Works even in turbulence
- Visually pleasing appearance and rotation of the blades
- Quiet or almost minimal acoustic noise
- Movement of the blades even in low wind speed of 1m/sec
- Turbine construction is resistant to gale 60m/s (132MPH)
- Designed for mounting on mast, straight or saddle area
- Design: aluminum alloy, stainless steel
- Design life: at least 20 years
- Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db
4.Technical Specifications
Items | CXF300 | CXF600 | CXF1000 | CXF3000-Ⅰ | CXF3000-Ⅱ |
Rated power | 300W | 600W | 1000W | 3000W | 3000W |
Dimension | Ø1080/1240 | Ø1320/1540 | Ø2200/2400 | 3530/Ø3600 | Ø4160/4570 |
Weight | 27 | 50 kg | 180 kg | 415KG | 680 kg |
Blade material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
Blade quantity | 3 | 3 | 3 | 3 | 3 |
Swept area ㎡ | 0.76 | 1.27 | 3.6 | 7.02 | 7.72 |
Min starting wind speed | 1m/s | 1.3m/s | 1.5 m/s | 1．5m/s | 1.5m/s |
Cut-in wind speed | 2.7 m/s | 2 7m/s | 3.5m/s | 3．5m/s | 3.5m/s |
Rated wind speed | 12m/s | 12m/s | 13m/s | 13m/s | 13m/s |
Cut-off wind speed | 15m/s | 15m/s | 15m/s | 15m/s | 15m/s |
Survival wind speed | 65m/s | 65m/s | 60m/s | 60m/s | 60m/s |
Generator type | AC,3Phases | AC,3Phases | AC,3Phases | AC,3Phases | AC,3Phases |
Controller Output Voltage | 12V/24V | 24V/48V | 48V | 48V | 96V |
Controller Braking System | 3-phase short circuit by NFB brake | 3-phase short circuit by NFB brake | 3-phase short circuit by NFB brake | 3-phase short circuit by NFB brake | 3-phase short circuit by NFB brake |
Ambient Temperature | -40~50 ℃ | -40~50 ℃ | -40~50 ℃ | -40~50 ℃ | -40~50 ℃ |
Noise | Noisy from National Machinery Quality Inspection Centre at 12m/s : <40db | ||||
