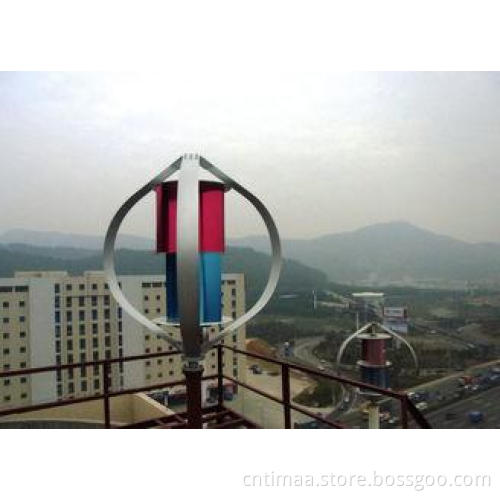

Roof Mounted Maglev Vertical Axis Wind Turbine Magnetic Levitation Generator
1. Brief to 600w wind turbine
The CXF series of vertical axis maglev wind turbines undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple specialities.
| Items | CXF600 |
| Rated power | 600W |
| Dimension (Height/Diameter) | Ø1540mm / 1320mm |
| Weight | 50 kg |
| Blade material | Aluminum Alloy |
| Blade quantity | 7 (3 Darrieusand 4 Savonius) |
| Swept area ㎡ | 0.30 |
| Min starting wind speed | 1.3 m/s |
| Cut-in wind speed | 3.5m/s |
| Rated wind speed | 13m/s |
| Cut-off wind speed | 15m/s |
| Survival wind speed | 60m/s |
| Generator type | AC,3Phases |
| Controller Output Voltage | 24V/48V |
| Controller Braking System | 3-phase short circuit by NFB brake |
| Ambient Temperature | -40~50 ℃ |
| Noise | Less than 40dB |
| Annual Energy Production (@ 5 m/s wind speed ) | about 1500 kWh |
2. Feature:
- Magnetic levitation technology
- Independent of the direction of the wind
- Startup at low wind speed of 1m/s
- Higher efficiency compared to traditional HAWT
- Works even in turbulence
- Visually pleasing appearance
- Turbine construction is resistant to gale 60m/s (132MPH)
- Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
- Design life: at least 20 years
- Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db
3. Application :
The 600w wind turbine, 24V and 48V for option, is ideal for both of residential and commercial applications as well as off grid and on grid power systems. The unit provides a durable, reliable, and fully customized hybrid solution to Telecoms Base Receiver Station (BTS), Charging Station by Solar and wind and also very suitable for power supply to home.
