400w Led High Bay Lamps With Cree-XBD IP65 Replace 800w Sod
  • 400w Led High Bay Lamps With Cree-XBD IP65 Replace 800w Sod
400w Led High Bay Lamps With Cree-XBD IP65 Replace 800w Sod

400w Led High Bay Lamps With Cree-XBD IP65 Replace 800w Sod

Min. Order:
1
Min. Order:
1
Delivery Time:
30 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Product Description
Product Description

400w Led High Bay Lamps With Cree-XBD IP65 Replace 800w Sodium Lamp

Quick Detail:

Can replace the traditional 800W sodium lamp CREE-XBD LED chip IP65 Respirator design

copper heatpipe zipped-fin Reflector can be 27°/ 60°/ 90°

Description:

1. Modular design, making power diverse, enriching product line.

2. Using imported high brightness SMD light source (CREE-XBD), high thermal conductivity,

light failure small, no ghosting.

3. Energy Saving Effect is Obvious , saving above 50%-70% energy compared with sodium lamp.

4. By riveting heatpipe to the fins , the heatpipe can conduct heat rapidly from chips bottom to the fins,

greatly lower down the temperature of light source, extending its life span.

5. Energy Saving Effect is Obvious , saving above 50%-70% energy compared with sodium and Halogen.

Applications:

the factory, plaza, golf course, ships, airport, subway,overpass, outdoor adverting, petrol stations,

exhibition halls, supermarkets and warehouses.


Specifications:

Items

Technical Parameters

Model

CO-D330-400W

Input Voltage

AC85-265V 50-60 HZ

Lamp Power

400-410W

LED Type

CREE

LED Luminous Flux

120 LM/W

CRI

≥80

CCT

2700 K-6500 K

Power Factor

0.95

Power Efficiency

≥0.92

Lamp Effectiveness

>92%

Reflector Angle

27°/ 60°/ 90°

LED Driver

2pcs MEANWELL

Working Temperature

-40~60°

Ambient Humidity

10%~90%

Copper Quantity

8 pcs

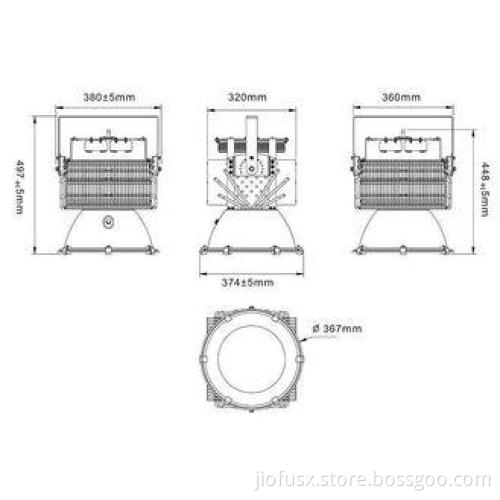

Heat-sink Size

260*120*323mm

Size(mm)

Φ374x 459mm

IP Grade

IP65

Net Weight

9.5 KG

Material

Aluminum Fin & Tempered Glass

Feature Advantage:

1. High power LED heat sink has perfectly replaced the traditional 400W to 1000W sodium lamp.

2. Energy Saving Effect is Obvious , saving above 50%-70% energy compared with sodium and Halogen.

3. Four patented technologies: HDT, zipped-fin, compressed pipe making the high power LED heat sink ,

easy to install, solid in structure, super heat dissipation.

4. The energy-saving cutting edge innovation fills the gap in the led heat sink market.

Competitive Advantage:

OEM, ODM, Customize aluminum plate, Available LED chip.
