NH310 paint colorimeter / color meter with 8mm/4mm aperture
- Payment Type:
- T/T
- Incoterm:
- EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 2 Days
- Transportation:
- 国际快递
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 10000 |
| Payment Type: | T/T |
| Incoterm: | EXW |
| Certificate: | CE/ISO9001/ROHS/FCC/TUV |
| Transportation: | 国际快递 |

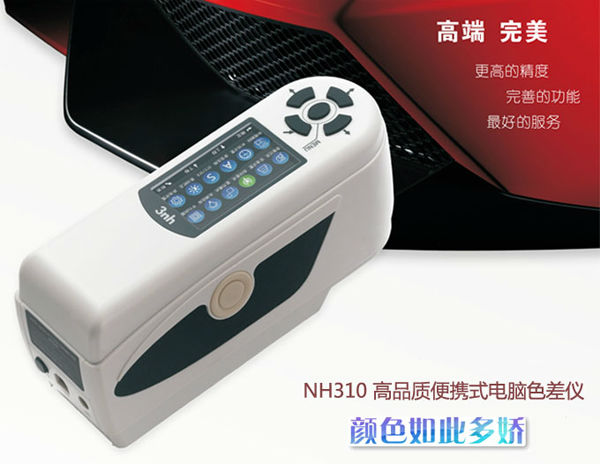

NH310 paint colorimeter / color meter with 8mm/4mm aperture
color difference test meter Specifications
|
Model |
NH310 color meter |
|
|
Display Mode |
CIE L*a*b; CIE XYZ; CIE RGB;CIEL*u*v; CIE*C*H; Whiteness &Yellowness; Color Fastness |
|
|
Color Difference Formula |
ΔE*ab; ΔL*ab; ΔE*C*H; ΔECIE94; ΔEHunter |
|
|
Illuminating/viewing geometry |
8/d (8°illumination angle/diffuse viewing) |
|
|
Light Source |
LED blue light excitation |
|
|
Detector |
Silicon photoelectric diode |
|
|
Measuring Aperture |
Φ8mm; Φ4mm; Φ8mm extended aperture (optional) |
|
|
Measuring Conditions |
Observer: CIE 10° Standard Observer Illuminant: CIE Standard Illuminant D65; D50; A |
|
|
Measuring Range |
L: 0 to 100 |
|
|
Repeatability |
Standard deviation within ΔE*ab 0.06 (Measurement Conditions: Average of 30 measurements of standard white plate) |
|
|
Storage |
100 pcs standard samples; 20000 pcs test samples |
|
|
Minimum Interval Between Measurement |
Approx. 1 sec |
|
|
Battery Life |
More than 3000 measurements |
|
|
Lamp Life |
more than 1.6 million times in 5 years |
|
|
Display |
TFT True-color; 2.8 inch@(16:9) |
|
|
Interface |
Model B: USB RS-232: Baud rate 19200bps |
|
|
Operating Temperature Range |
-10°C to 40°C (14°F to 104°F) |
|
|
Storage Temperature |
-20°C to 50°C (-4°F to 122°F) |
|
|
Humidity Range |
less than 85% relative humidity, no condensation |
|
|
Weight |
500g |
|
|
Dimensions |
205 x 70 x 100 mm |
|
|
Size of the Packing |
435 x 205 x 345mm |
|
|
Standard Accessories |

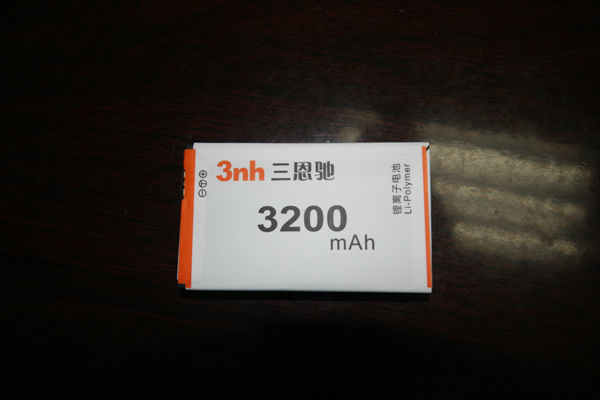

AC Adapter; Li-ion Battery; Operation Manual; Software CD; USB Cable; White Calibration Cover; Φ8mm Measuring Aperture; Φ4mm Measuring Aperture |
|
|
Optional Accessories |
Extended Aperture(Φ8mm); Mini-printer; Printer Cable, Universal Test Components, Powder Test Box |
|
color difference test meter

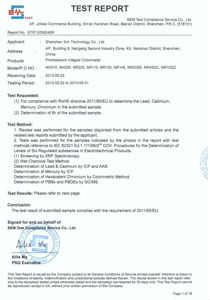

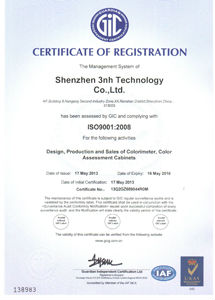

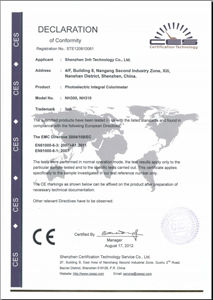

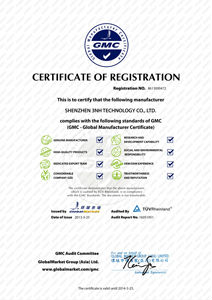

Certifications:
FAQ:
1. When I received NH310/NH300 colorimeter and perform measurement, why the measured data is abnormal?
After receiving NH310/NH300, you have to perform white and black calibration manually when first starting.
2. In which condition, manual white and black calibration and auto calibration are required for NH310?
a. It`s needed to perform manual calibration for NH310 when first starting.
b. In the subsequent starting, NH310 will perform auto calibration at startup. No need to perform manual calibration.
c. Suggestion: it`s best to perform manual calibration once a week or when NH310 measured data is not accurate.
3. In which condition, manual white and black calibration for NH300 is required?
a. It`s needed to perform manual calibration for NH300 when first starting.
b. In the subsequent starting, no need to perform manual calibration.
c. Suggestion: it`s best to perform manual calibration once a week or when NH300 measured data is not accurate.
4. How to replace NH310 measuring aperture?
There are three measuring apertures for NH310: Φ8mm (standard accessory), Φ4mm (standard accessory), extended Φ8mm (optional accessory)
a. Turning on
b. Removing measuring aperture, install the needed measuring aperture.
c. Select [Settings-Aperture Setting" in main menu to select corresponding measuring aperture.
d. After selecting aperture, the instrument will display [White and Black Calibration" interface. White and black calibration must be performed.
e. Replace completed.
5. CQCS3 (Color Quality Control System) Installation
a. Before installation, please Copy CQCS3 folder to your computer and don`t remove any files in CQCS3 folder.
b. Double-click the setup.exe to install CQCS3 software.
c. Then double-click Install.bat under the CQCS3\USB_Driver file to install the driver.
d. Detailed installation information please read the "Installing Software" under CQCS3 User manual.doc.
Warranty:
NH310 color meter is under warranty for 12 months from the purchase date. Customers must provide warranty card and valid proof of purchase.
