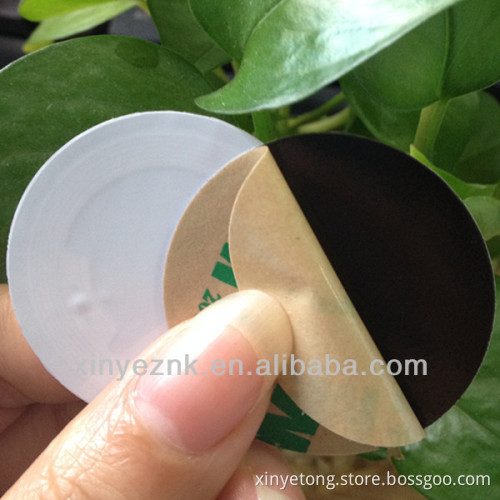

13.56MHZ Ntag203 Chip NFC Tag With Anti-Metal Sheet

Description:

NFC (near field communication) is a wireless technology which allows for the transfer of data such as text or numbers between two NFC enabled devices. NFC tags, for example stickers or wristbands, contain small microchips with little aerials which can store a small amount of information for transfer to another NFC device The tag contains electronically stored information which can be read from up to several meters (yards) away. Unlike a bar code, the tag does not need to be within line of sight of the reader and may be embedded in the tracked object.

Standard:

IEC 14443, ISO 9001:2008

Physical:

Dimension:

25 mm in diameter

Other size: 85 x 54 , 50 x 70 mm

50 x50, 62 x22, 37.5 x25, 47 x 78, 25 mm, 35 x 35 mm, 30 mm etc...

Customer size per negotiation

Thickness

Alu Antenna:0.03 mm

Substrate:0.03 mm

Total: 0.1~0.2 mm

Material:

Top: PET/ PVC/Paper

Substrate: Alu antenna+ PET

Back: peer off paper

Adhesive

3M adhesive tap backward

Packing status

Roll pack, single

Electrical:

Operating Frequency:

13.56 MHz

Reading Distance

Up to 10 cm for 13.56 Mhz

Chip Features

Chip option

Mifare1 1K / 4K

Mifare1k compatible chip (FM1108)

Ultralight / Ultralight C

Ntag203

Memory size

s50( 1 kB) , S70 ( 4 kB), FM08( 1 kB)

Ultralight (512Bit) Ntag203 (168Byte)

Life Time:

5 years

Warranty Period

1 Year

Application:

* Library management

* Media and Ad

* Ticket and transportation

* Logistics

* NFC Mobile Consumption

* Electrical equipment tracking

*E-payment

Temperature:

Operating:

-25 C to +50 C
