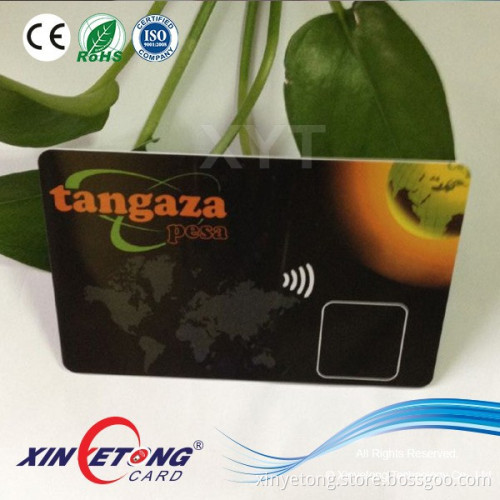

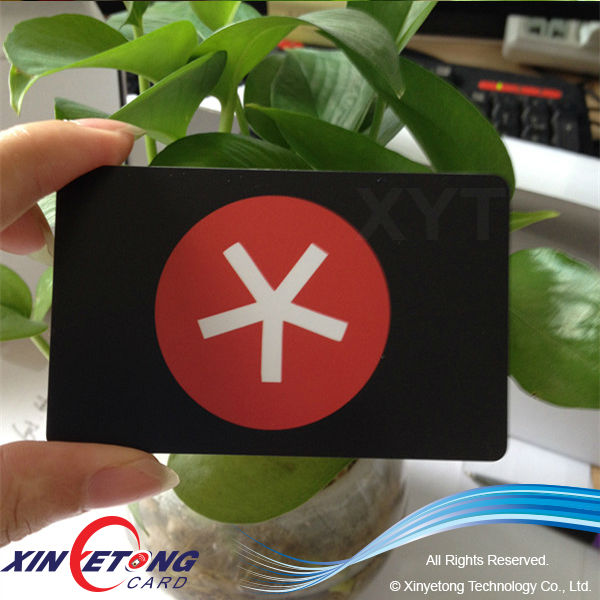

Type 2 Printable Ntag216 NFC Card With Factory Price

Features and benefits

1. Contactless transmission of data and supply energy
2. Operating frequency of 13.56 MHz
3.Data transfer of 106 kbit/s
4.Data integrity of 16-bit CRC, parity, bit coding, bit counting
5. Operating distance up to 100 mm (depending on various parameters as e.g. field
strength and antenna geometry)
6.7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
7.UID ASCII mirror for automatic serialization of NDEF messages
8.Automatic NFC counter triggered at read command
9.NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message
10.ECC based originality signature
11.Fast read command
12.True anticollision
13. 50 pF input capacitance

-------------------------------------------------------------------------------------------------------------------

2.1 EEPROM

1.180, 540 or 924 bytes organized in 45, 135 or 231 pages with 4 bytes per page
2. 144, 504 or 888 bytes freely available user Read/Write area (36, 126 or 222 pages)
3. 4 bytes initialized capability container with one time programmable access bits
4. Field programmable read-only locking function per page for the first 16 pages
5.Field programmable read-only locking function above the first 16 pages per double
page for NTAG213 or per 16 pages for NTAG215 and NTAG216
6. Configurable password protection with optional limit of unsuccessful attempts
7. Anti-tearing support for capability container (CC) and lock bits
8. ECC supported originality check
9. Data retention time of 10 years
10. Write endurance 100.000 cycles

-------------------------------------------------------------------------------------------------------------------
