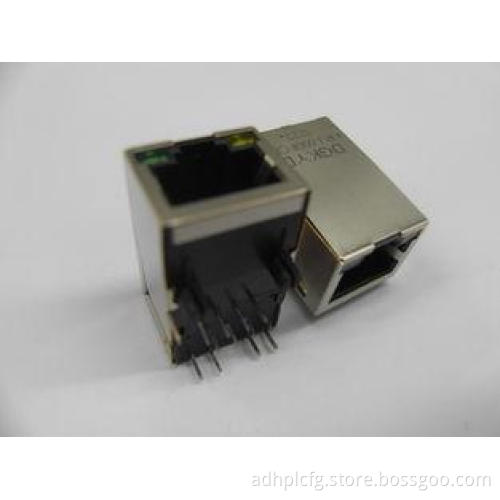

Integrated 100M Tap Up RJ45 filter with led ,side angle Jac

• 10/100Base-Tx RJ45 single port 1X1 Vertical with LEDS with side entry
• Single port 1X1 Tab-Up RJ45 with internal magnetics
• Internal magnetics are 100% electrically tested for HI-POT and functionality
• Suitable for CAT5&6 fast Ethernet Cable or better UTP
• 350uHminimum OCL with 8mA bias current
• High performance for maximum EMI suppression
• Minimum 1500Vrms isolation per IEEE 802.3 requirement
• ROHS-6 peak wave solder temperature rating 260℃
• Operating temperarure range :0℃ to +70℃
• Storage temperature range :-40℃ to +85℃
• Number of positions:8
• Number of contacts loaded:8
• Shieded:YES
• Rohs compliant
• Length:25.4mm
• LEDS:YES
• EMI finger:NO
• LEFT LED:Green,RIGHT LED:Yellow
• Usage:KRJ-098FCNL

Mechanical Dimensions:(Unit:mm)

.XX Tolerance:+/-0.25

.XXX Tolerance:+/-0.13

Specifications:

Material specifications:

• Plastic core:Glass fiber filler PBT Black(UL94V-0)
• Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
• PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
• Housing:Phenolic, PBT Black (UL94V-0)
• Metal shell:Copper Alloy ,Tin and Nickel plated

Note:RJ45 ,in order to keep good touch between gold finger and crystal head,should paint

the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request

and cost to proceed, gold finger insert and pull life should be 750 times above

Electrical Specifications at 25℃

．Insertion Loss:1-100MHZ -1.0dBmax

．Rturn Loss:1-30MHZ -16.0dBmin

30-60MHZ -14.0dBmin

60-80MHZ -10.0dBmin

．Cross Talk:1-30MHZ -40.0dBmin

30-60MHZ -35.0dBmin

60-80MHZ -30.0dBmin

．CMR:1-100MHZ -35dBmin

．Hi-pot:1500v AC 6S 1mA

．Turn Ratio:1CT:1CT±3%

．OCL:350uH @100KHZ 100Mv 8mA DC

Schematic:

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
