Dimmable Led Candle Lamp Ac 110v With Al1070 Heat Sink Ra90
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong,China (Mainland) |
|---|

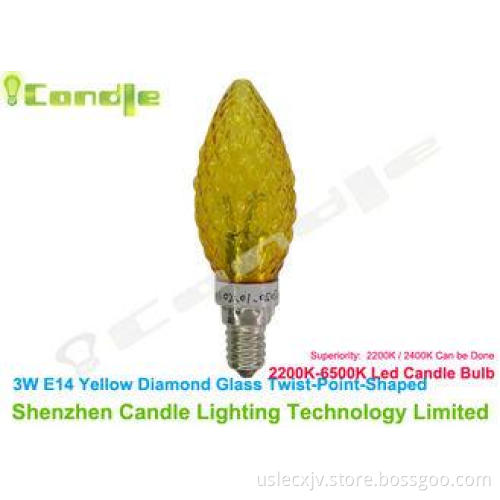

Al1070 Heat Sink Led Candle Lamp Ac110v Ac220v Dimmable and CE
Quick Detail:
1. Radiator material: 1070 aluminum
2. Voltage: ac85v-264v/50-60hz
3. Dimmable: available
4. Voltage: can customizable Direct Current (DC)
5. Radiator thermal conductivity: 226w/m.k
6. Brand Name: 3w-E14-Yellow Diamond Glass-Twist Point Shaped-Led Candle Bulb
Led Candle Lamp Application:
Application: Bedroom /Living room /Reading room/ Home /Library/Office/Washroom/Bar/
Coffee House/ Supermarket/ Hotel/ Restaurant/ Dining room/ Convenience store
Led Candle Lamp Specifications:
| Product Model | KDL-CBL-3WE-E14 | |||||
| Power | Led 3.0w | |||||
| Viewing Angle | 360 degree ±5 degree | |||||
| Color Consistency | Variation of chromaticity coordinates within a six-step Macadam ellipse or less | |||||
| Color Temperature (Optional) | 2200K-6500K,or customized | |||||
|
Conversion Efficiency |
>75% | |||||
| Power Factor | >0.85 | |||||
| Operating Temperature | -20 degrees C to 45 degrees C | |||||
| Size | H106 millimeters*D35 millimeters | |||||
| Working Life | 50000H | |||||
| Warranty period | 3 years | |||||
| N.W. | 24g±2g | |||||
| Packing | 100pcs/Carton | |||||
| Authentication | CE | |||||
| CRI (Optional) | Ra≥65 | Ra≥70 | Ra≥80 | Ra≥90 | ||
| Luminous Flux | 220-280Lm | 210-270Lm | 210-270lm | 180-240lm | ||
|
Light Base (Optional) |
Material: | copper plating | Copper, Iron, Aluminum | |||
| Type: | E10 / E12 / E14 / B15 / E17 / B22 / E26 / E27 | |||||
| Light Shell | Material: | shatterproof glass(Special processing technology) | ||||
| Color(Optional): | milky white / frosted / clear | |||||
| Lamp House(Optional) | Type: | 5630 / 2835 | ||||
| Quantity: | 6PCS | |||||
| Brand: | Epistar | customize other brands | ||||
| PCB | Thermal conductivity: | 2W/m.k | ||||
| Thickness: | 1.2mm | |||||
| Dimmable (Optional) | Dim | No-Dim | ||||
| Vin (Optional) | AC85V-130V / 50-60HZ AC170V-264V / 50-60HZ | AC85V-264V / 50-60HZ | ||||
| Led Driver | Constant current isolate power supply | |||||
| Capacitor: | anti high temperature of 135° | |||||
| Heatsink | Material: | AL1070 | ||||
| Thermal conductivity: | 226w/m.k | |||||
| Process: | Integrated cold forging | |||||
| Color(Optional): | any color | |||||
| Accessories | Silicone: | Imported brands | ||||
| Thermal grease: | Imported brands | |||||
| Thermal conductivity:6W/m.k | ||||||
Cautions: Led Candle Lamp
1. Switch of power before replacing led candle .
2. Choose right power supply to match the product.
3. Do not touch the product surface when it is lit.
4. Do not look at the light source directly.
5. Keep away from direct sunshine or high temperatures.
6. Indoor use only
7. If you are in any doubt about the installation or use of this product, consult a qualified electrician.
