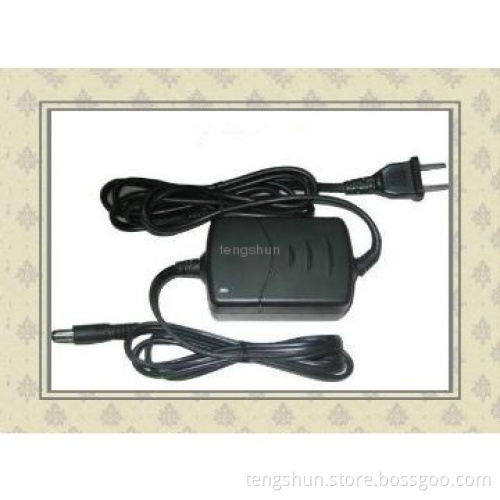

13.8V Battery Charger Lead-acid Battery Charger Shenzhen
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Input plug | EU,US,UK,Australia,Japan,South Korea,CN, customize |
|---|---|
| Output cable | 1.2m |
| Output connector | USB,DCjack, JST, XRL, Alligator Clip,Air plug |
| Color | Black/white |
| Product name | 13.8V Battery Charger |
| Output Voltage | Other |
| Application | Standard Battery |
| Type | Universal |
| Charge Current | 2000mA |
Detail Description
13.8V Battery Charger Lead-acid Battery Charger Shenzhen
13.8V Battery Charger
1. Input Plug: EU,US,UK,Australia,Japan,South Korea,CN, customized
2. Output Connector: USB,DCjack, JST, XRL, Alligator Clip,Air plug
3. All kinds of shell are available
4. Certification: UL,CE, FCC, SAA, PSE, ROHS,EK,CB,GS
5. Warranty: two year
Specification
|
Output |
DC output voltage |
7.2V |
13.8V |
Output voltage tolerance |
±5% |
±5% |
|
Rated output current |
1A |
1A |
|
Output current range |
0~1A |
0~1A |
|
Output power |
7.2W |
13.8W |
|
Ripple and noise |
70mVp-p |
100mVp-p |
|
Line regulation |
±1.0% |
±0.5% |
|
LED indicator |
Green LED ON<150~200mA |
||
Setup rise hold up time |
500ms,50ms,16ms at full load |
||
|
Input |
Input voltage range |
100~240VAC 140~350VDC |
|
AC input current |
0.2A/230VAC |
||
Efficiency |
75% |
78% |
|
AC inrush current |
3A/230VAC |
||
Leakage current |
<3.5mA |
||
Frequency range |
50~60Hz |
||
|
Protection characteristic |
Over load protection |
105%~150%rated output power |
|
Protection mode : FOLDBACK limiting output reset: auto recovery | |||
Environment |
Working temperature |
0°C~+50°C |
|
Working humidity |
20%~90% RH non-considering |
||
Storage Temp,humidity |
-10°C~+60°C |
||
Temp.coefficient |
±0.03% /°C(0~50°C) |
||
Vibration |
10 ~ 500Hz, 2G10min / 1 cycle, duration 60 minutes, each axis |
||
Safety |
Withstand voltage |
I/P-O/P:3000 VDC |
|
Safety standards |
EN60950 |
||
Insulation resistance |
I/P-O/P:100M Ohms/500VDC/25°C/70%RH |
||
Harmonic current |
Compliance to EN55024, EN61000-3-3 |
||
EMS immunity |
Compliance to EN61000-3-3 |
||
Others |
Weight/Packing |
0.085kg/100PCS/10kg |
|
Dimension |
74*29*64MM |
||
Connector |
Plug |
5.5X2.1mm |
|
Cable |
1.2m |
1
If you are interested in our product or want more detail information, please feel free to contact me.
Email: marshalee@sztenshun.com
Skype: marshalee11
Additional Information
| Payment Terms | L/C, T/T, Credit Card, Western Union, Money Order, Paypal |
|---|---|
| Minimum Order | 100pcs |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | Delivery time: 15 days after your order is confirmed by usSamples are available in three days |
| FOB Port | Shenzhen |
| Loading Info | Shipping by air, sea, express are all available |
| Packing Info | Inner package: each in a white boxPcs in a carton: 100pcs |
| Target Market(s) | Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
