Product Description
Product Description
Basic Specification
| Color | black |
|---|---|
| Product name | 5v dc led power supply |
| Usage | Electronic product, Game Player, Laptop, Linear, Mobile Phone, Other, Power, Switching |
| Zone Of Application | European Union |
| Connect Type | Plug In |
| Output Type | DC |
Detail Description

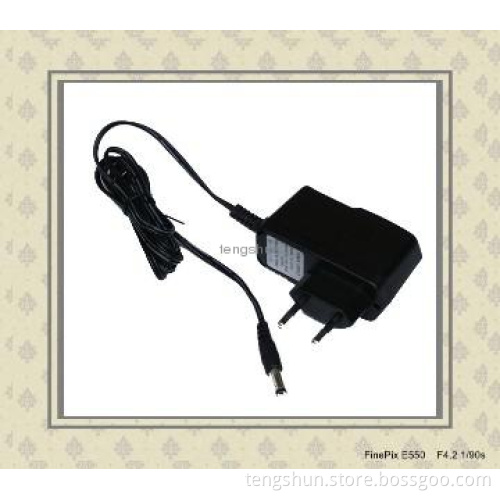

5V 2A AC/DC Adaptors for Ipad,Iphone,MP3,CCTV
5v dc led power supply
| Input | 100 to 240V AC, 50/60Hz |
| Output power | 12W series |
| Output voltage | 5V/6V/9V/10V/12V/15V/18V/24V 5V2A |
| Output current | 500mA-2000mA |
| Protection | Overload protection |
| Output over voltage protection | |
| Short circuit protection | |
| Certificate | CEC power supply standard |
| CE approved (EMC, TVD) | |
| KC SAA C-tick PSE GS | |
| ROHS | |
| FCC UL | |
| Efficiency | Mini 82 % |
| Standard DC Connector | 5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 /4.0*1.7 /3.5*1.35 /6.3*3.0 with pin inside |
| No Load Power Consumption | ≤0.3W at Rated Voltage |
| Ripple And Noise | Output voltage 1% |
| High-Voltage test | Primary to secondary: 3 kV 5 mA 60S |
| Leakage Current | 0.5 mA(max) at input 240V AC |
| Operating Temperature Range | 0--40°C |
| Storage Temperature Range | -20 --- 85°C |
| High Humidity Operation | + 40 °C and 90 ~ 95% Humidity |
| Dimension | 74.0*41.0*47.5MM |
| Net weight | About 110 gram per unit. USB About 75 gram per unit |
| MTBF | 50,000 hours |
| Insulation Resistance:Primary to Secondary | 50 Meg. Ohms min. 500VDC |
| Application | Mobile phone, MP3, MP4,Tablet,MID, Water purifier, LED, Medical machine,CCTV camera, LCD, Set-top box, DVR, Router, etc. |
| Packing A (USB Output, without cable) | Qty: 100PCS/CTN |
| MEA: L44cm*W38cm*H29cm | |
| Packing Material:PE bag+white box+carton | |
| Packing B (USB Output, without cable) | Qty: 100PCS/CTN |
| MEA: L47cm*W38cm*H25cm | |
| Packing Material:PE bag+Paper segment+carton | |
| Packing C (with cable) | Qty: 100PCS/CTN |
| MEA: L52cm*W36cm*H18.5cm | |
| Packing Material:PE bag+white box+carton | |
| Packing D (with cable) | Qty: 100PCS/CTN |
| MEA: L47cm*W38cm*H25cm | |
|
Packing Material:PE bag+Paper segment+carton |
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 100pcs |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | Delivery time: about 15 days after your order is confirmed by usSamples are abvailable in three days |
| FOB Port | Shenzhen |
| Loading Info | Shipping by sea, air and express are all available |
| Packing Info | Inner package: each in a white boxPcs in a carton: 100pcs/ctn |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
