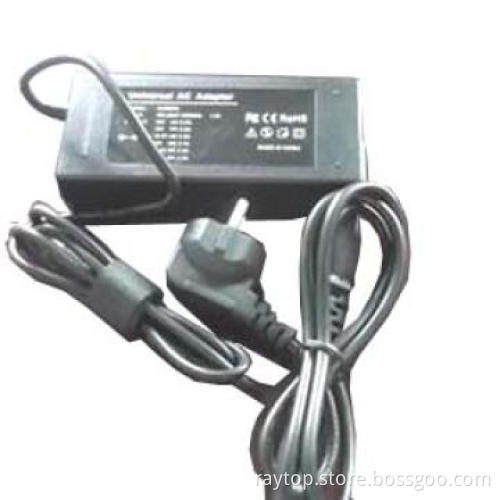

Automatic Universal Laptop Charger 90W with 8 switchable Tips
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Color | Black |
|---|---|
| Power | 90W |
| Output Type | DC |
| Output voltage | 18.5V |
| Voltage | 24V |
Detail Description
1.Input :AC100-240V 50/60Hz Max.1.8A
2.Output: DC 15-20V
15V, 6.0A
16V, 5.6A
18.5V, 4.8A
19V, 4.7A
19.5V, 4.6A
20V, 4.5A
.
3.Safty Approval: CE, RoHS, TUV,FCC
4. 8 Switchable tips
Features:
1.With High efficiency and true voltage output automatically, reduce misoperation voltage by hand
2.Auto-reset to the lowest voltage 15V after current interruption to protect your laptop
3.Built-in dual-protection design,
-Over-current protection,
-Over-voltage protection,
-Over temperature protection
3.Interchangeable tips:eliminates the need for multiple adapters now and in future
4.Includes:8 interchangeable laptop connectors
(including 4 option ones)
5.Different voltage suitable for the most laptop/notebook computers
6.Active PFC design
Voltage |
Output |
Size |
Fit for Laptop |
12V/F1 |
12V/Max90W |
4.0*1.7mm |
Asus EEEPC |
15V/F2 |
15V/Max90W |
6.3*3.0mm |
Toshiba |
16V/F3 |
16V/Max90W |
5.5*2.5mm |
IBM |
|
16V/F4 |
16V/Max90W |
6.5*4.4mm (with 1.4mm pin) |
Sony. Fujitsu |
18.5V/F5 |
18.5V/Max90W |
4.8*1.7mm |
|
|
19V/F6 |
19V/Max90W |
5.5*2.5mm |
Acer, Compaq, Delta, HP, Fujitsu, Gateway, Toshiba, Liteon |
|
19V/F7 |
19V/Max90W |
5.0*3.0mm (with 1.4mm pin) |
Samsung |
|
19V/F8 |
19V/Max90W |
5.5*2.1mm |
Fujitsu, Gateway, Toshiba, Liteon |
|
19.5V/F9 |
19.5V/Max90W |
6.5*4.4mm (with 1.4mm pin) |
|
Additional Information
| Payment Terms | T/T, L/C |
|---|---|
| Minimum Order | 1000 sets |
| Lead Time / Delivery Time | 20 Day(s) |
| Sample Available | YES |
| Delivery Details | 20 Working days after down payment effected. |
| FOB Port | Shenzhen |
| Packing Info | Optional package solutions for customers.1. Common package: Kraft paper box2. Complete blister package3. Blister+Color BoxOutside: Master carton, each 20 pcs |
| Target Market(s) | Eastern Europe, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Western & Southern Europe |
