high pressure Industrial water Centrifugal Pump / vertical

High Pressure Industrial Water Centrifugal Pump/Vertical Multistage Pump

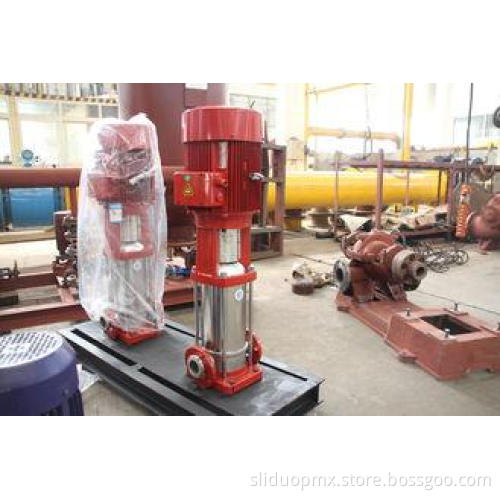

CDL/CDLF is a kind of vertical non-self priming multistage centrifugal pump, which is driven by a standard electric motor. The motor output shaft directly connects with the pump shaft through a coupling. The pressure-resistant cylinder and flow passage components are fixed between pump head and in-and outlet section with tie-bar bolts. The inlet and outlet are located at the pump bottom at the same plane. This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running, out-of-phase and overload.

Performance Range For CDLF Multistage Water Pump

1. Capacity : up to 250 m3/h

2. Head : up to305m
3. Speed : up to 3600rpm
4. Power : up to 200kw

5. Voltage : 220V to 480V
6. Temperature range : Within 120 Deg C

8. Working pressure : Within 40bar

Application For CDLF Multistage Water Pump

CDL/CDLF is a kind of multifunctional products. It can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure. CDL type is applicable to conveying non-corrosive liquid, While CDLF is suitable for slightly corrosive liquid.

Water supply: Water filter and transport in Waterworks, boosting of main pipeline, boosting in high-rise buildings.

Industrial boosting: Process flow water system, cleaning system, high-pressure washing system, fire fighting system

Industrial liquid conveying: Cooling and air-conditioning system, boiler water supply and condensing system, machine-associated purpose, acids and alkali

Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, swimming pool, separator

Irrigation: Farmland irrigation, spray irrigation, dripping irrigation

Operation Condition For CDLF Multistage Water Pump

Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.

Liquid temperature:

Normal temperature type: -15~+70,
Hot water type: +70~+120
Ambient temperature: Up to +40
Altitude: Up to 1000m

Electric Motor For CDLF Multistage Water Pump

Full-enclosed air-blast two-pole standed motor
Protection class: IP55
Insulation class: F

Standard Voltage For CDLF Multistage Water Pump

50Hz:
1x220230/240V
3x200220/346380V
3x220240/380415V
3x380415V
60Hz:
3X200230/346400V
3x220255/380440V
3x220227/380480V
