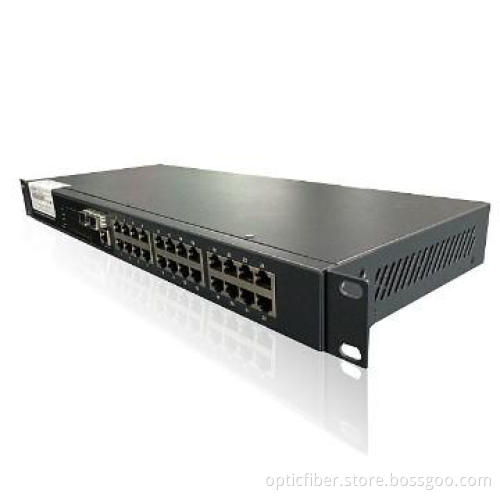

1000m Management Media Converter with 1-Port Fx + 24-Port RJ45

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

color	black/silvery
Connector	SC
Work Temperature	0 to 50℃

Detail Description

10/100/1000M 2 Fiber port + 24 RJ45 port Ethernet Switch

Technical parameters:
1. Standard Protocol: IEEE802.3 10 Base-T standard
IEEE 802.3u 100Base-TX and IEEE802.3z standard
2. Connector: One UTPRJ-45 connector, one SC/ST connector
3. Operation mode: Full duplex mode or half duplex mode
4. Power supply parameter:
Adapter(External): 110-265V AC input, 5V1A DC output
Power(Internal): 110-265V AC input, 5V1A DC output
5. Environmental temperature: -20 - 70
6. Relative humidity: 5%-90%
8. TP cable: Cat5 UTP cable
9. Transfer fiber:
Multi-mode: 50/125, 62.5/125 or 100/140μ M
Single mode: 8.3/125, 8.7/125, 9/125 or 10/125μ M
10 Dimensions:
Power external: 440mm(L)x 180mm(W) x 44mm(H)

Cautions:
1. This product is suitable for indoor application.
2. Put on the dust cover of fiber interface when not used.
3. It is forbidden to stare at the TX fiber-transfer end with naked eyes.
4. Single optical fiber transceiver must be used in pair (See the attachment description in delivery).

Trouble shooting:
1. Device is not matched. Please select the corresponding network device according to the transfer rate of the product (10Mbps or 100Mbps, ) when connected to other network devices (network card, hub, switch).
2. Line loss is excessive during the fiber wiring. Excessive loss in connector plug-in and fiber soldering welding, and excessive intermediate nodes may cause excessive loss rate or abnormal operation.
FVLAN Function:

Support VLAN, QoS, IPv4, IPv6
Support long data up to 10K byte
Low consumption, low temperature and good stability
Note: When the switch set at left side is VLAN Status, and
Set at right side is DIS. VLAN Status.
All RJ45 Ports are separated when the device set at VLAN
Status. And the equipment no need use in pair.

Additional Information

Payment Terms	L/C, T/T, Western Union
Minimum Order	5pcs
Lead Time / Delivery Time	3 Day(s)
Sample Available	NO
Delivery Details	Discuss
FOB Port	Shekou,Shenzhen,Yantai
Loading Info	FOB Shenzhen
Packing Info	All Export Packing
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
