DC12V 1W led puck lights,CNC casting with CE&RoHS,CRI>80
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| led chip | Bridgelux |
|---|---|
| surface finish | CNC+ Oxidation |
| CCT | WW/NW/CW |
| life time | 50, 000 hours |
| CRI | >80 |
| Finishing Color | Silver |
| Light Source | LED |
| Beam Angle | 45 |
| IP | IP21 |
| Application | Airport, Hotel, Kitchen, Meeting Room, Shopping Mall |
| Material | Acrylic, Aluminum |
| Voltage | 12V |
Detail Description
Parameter:

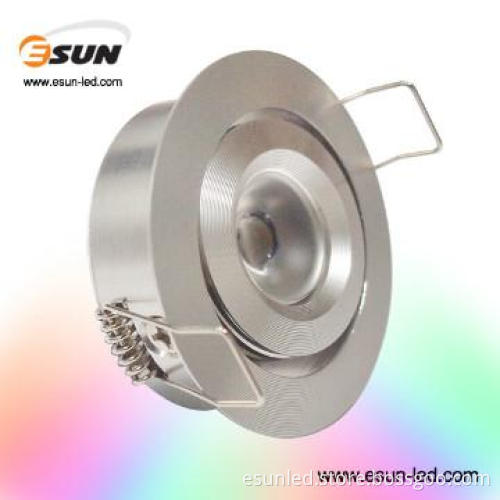

Product Name:led down light ES-DA01 1*1W
Product Model:ES-DA01-2
Power: 1W
Luminous Flux: 106lm
Input Voltage: DC12V
Light Source: 1×1W high power led
Material: Aluminum 6063T5
Product Size: Φ52mm×H24mm
Features:
1) Great for under-cabinet and other low voltage applications
2) High output white or warm white LED
3) 50.000 hours life time (17 years at 8 hours a day )
4) Beam angle:30/45/60 degree
6) Constant Vlotage regulation
7) Excellent thermal management and lumen maintenance
8) 2 years warranty
Specification:
1) DC12V,dimmable
2) Body material: anodized aluminum; IP20, complete with 30cm leads plus amp plugs
3) Operating temperature: -35-+45 degrees
4) 30 degrees or other as customer\' s special requirement
Application:
1) Under cabinet lighting
2) Art lighting,dispay lighting
3) Boat lighting, accent lighting
4) Recessed lighting, shelf lighting,etc
Product Name:led down light ES-DA01 1*1W
Product Model:ES-DA01-2
Power: 1W
Luminous Flux: 106lm
Input Voltage: DC12V
Light Source: 1×1W high power led
Material: Aluminum 6063T5
Product Size: Φ52mm×H24mm
Features:
1) Great for under-cabinet and other low voltage applications
2) High output white or warm white LED
3) 50.000 hours life time (17 years at 8 hours a day )
4) Beam angle:30/45/60 degree
6) Constant Vlotage regulation
7) Excellent thermal management and lumen maintenance
8) 2 years warranty
Specification:
1) DC12V,dimmable
2) Body material: anodized aluminum; IP20, complete with 30cm leads plus amp plugs
3) Operating temperature: -35-+45 degrees
4) 30 degrees or other as customer\' s special requirement
Application:
1) Under cabinet lighting
2) Art lighting,dispay lighting
3) Boat lighting, accent lighting
4) Recessed lighting, shelf lighting,etc
Additional Information
| Payment Terms | T/T, Western Union |
|---|---|
| Minimum Order | 100pcs |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | 5-7 days for sample order15-20 days for formal order |
| FOB Port | Shenzhen |
| Loading Info | by express, by air, by sea |
| Packing Info | white box, color box, blister packaging |
| Target Market(s) | Japan & Korea, Latin America, Middle East, North America, Western & Southern Europe |
