led touch dimmer DC12/24V CE approval in SGS
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Color | white, black |
|---|---|
| Input voltage | DC12/24V |
| Maximum power | 36W at 12V, 72W at 24V |
| Maximum Load Power | 36W at DC12V, 72w at DC24V |
| Control Range | 10 |
| Light Source | LED Lamp |
| Voltage | 12V |
| Efficiency | 85 |
| Voltage Regulation Factor | Other |
| Type | Manual Switch |
Detail Description

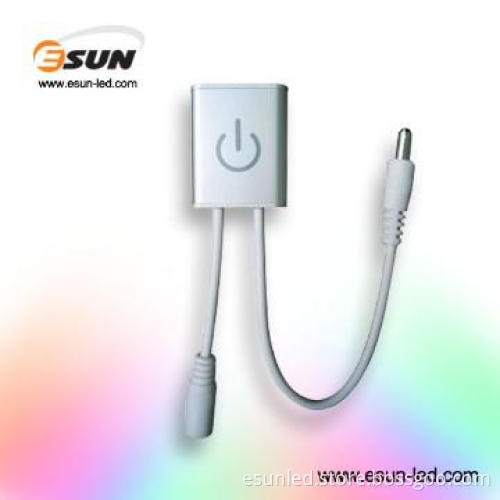

LED Dimmer DC12/24V
Input Voltage: DC12V/DC24V
Input Current: 3A
Dimension: 38*30.8*8.7MM
Input Power: 36W at DC12V input
72W at DC24V input
Cable: Input 5.5*DC2.1
Input cable 100MM
Output cable 200MM
Feature:
Led dimmer, It adopts capacitance touch technique;switch and dimming function can be realized by touching.
dim DC12V/24V directly driven led lighting products, suchas led cabinet light, led rigid bar, led strip and led panel light. It can also be used as on/offtouch switch. During the dimming process,it doesn\'t flicker.
Instruction:
1) The finger touches dimmer metal body
2) The touch time is less than 5 seconds, it is on/off switch function
3) The touch time is more than 5 seconds,it is dimming function, the brightness will be raise to highest or fallen to lowest
Installation:
Input Voltage: DC12V/DC24V
Input Current: 3A
Dimension: 38*30.8*8.7MM
Input Power: 36W at DC12V input
72W at DC24V input
Cable: Input 5.5*DC2.1
Input cable 100MM
Output cable 200MM
Feature:
Led dimmer, It adopts capacitance touch technique;switch and dimming function can be realized by touching.
dim DC12V/24V directly driven led lighting products, suchas led cabinet light, led rigid bar, led strip and led panel light. It can also be used as on/offtouch switch. During the dimming process,it doesn\'t flicker.
Instruction:
1) The finger touches dimmer metal body
2) The touch time is less than 5 seconds, it is on/off switch function
3) The touch time is more than 5 seconds,it is dimming function, the brightness will be raise to highest or fallen to lowest
Installation:
Additional Information
| Payment Terms | T/T, Western Union |
|---|---|
| Minimum Order | 100pcs |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | 5-7 days for sample order15-20 days for formal order |
| FOB Port | Shenzhen |
| Loading Info | by express, by air, by sea |
| Packing Info | white box, color box, blister packaging |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
