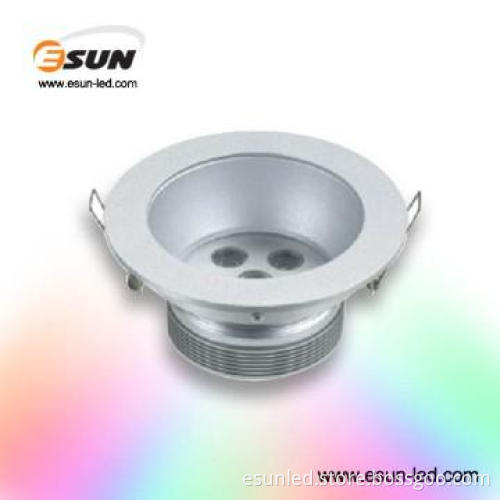

led down light,6*1W.CNC casting
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Brand Name | ESUN |
|---|---|
| LED Chip | Epistar |
| Warranty | 2 Years |
| Life time | 50,000 h |
| Finishing Color | Silver |
| Material | Aluminum |
| Voltage | 110-220V |
| Light Source | LED |
| Beam Angle | 30 |
| IP | IP21 |
| Application | Airport, Bathroom, Bathroom Room, Bedroom, Church, Cinema, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room |
Detail Description
Parameter:
Power: 6W
Luminous Flux: 480lm
Input Voltage: AC100-240V-50Hz/60Hz
Light Source:6×1W high power led
Material: Aluminum 6063T5
Product Size: Φ143mm×H78mm
Features
1. Refined CNC, smooth surface, no burr
2. Surface finishes: highlight, brushed silver, drawing black, veining
3. High thermal conductivity coefficient
4. Can be connected to a set by using junction box
5. 50,000 hours usable life
6. Available with cool white or warm white LEDs
7. No UV rays, No radiates infra-Red light
Power: 6W
Luminous Flux: 480lm
Input Voltage: AC100-240V-50Hz/60Hz
Light Source:6×1W high power led
Material: Aluminum 6063T5
Product Size: Φ143mm×H78mm
Features
1. Refined CNC, smooth surface, no burr
2. Surface finishes: highlight, brushed silver, drawing black, veining
3. High thermal conductivity coefficient
4. Can be connected to a set by using junction box
5. 50,000 hours usable life
6. Available with cool white or warm white LEDs
7. No UV rays, No radiates infra-Red light
| Part No. | LED Qty | Constant current | Lumen(lm) | Beam angle | Size(mm) |
| ES-DF01 | 6*1W | 350mA | 480 | 30 | WΦ143*H78 |
| ES-DF02 | 12*1W | 350mA | 960 | 30 | WΦ180*H81 |
| ES-DF03 | 15*1W | 350mA | 1200 | 30 | WΦ190*H83 |
| ES-DF04 | 20*1W | 350mA | 1600 | 30 | WΦ230*H100 |
Additional Information
| Payment Terms | T/T, Western Union |
|---|---|
| Minimum Order | 50 pcs |
| Lead Time / Delivery Time | 20 Day(s) |
| Sample Available | YES |
| Delivery Details | 15-25 days after payment |
| FOB Port | Shenzhen |
| Loading Info | by express,by air or by sea |
| Packing Info | cartons |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
