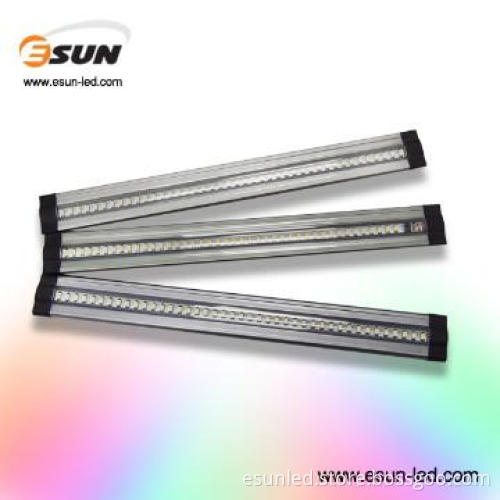

12W led cabinet lighting 120mm,trapezoidal shape
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Product Model | ES-CT06 |
|---|---|
| Brand Name | ESUN |
| Supply Ability | 10,000pcs/month |
| Beam Angel | 45 degree |
| Warranty | 2 Years |
| Finishing Color | Silver |
| Material | Acrylic, Aluminum, PMMA, Plastic |
| Light Source | LED |
| Voltage | 24V |
Detail Description
Parameter
Light Source: SMD3528
LED Brand: Epistar
LED QTY: 172pcs
Voltage: 12/24V DC
Power: 12W
Lumen: 1000lm
Size: 1200L*33W*12Hmm
Waterproof Degree: IP20
Warranty: 2 years
Certification: CE&RoHS
Power Supply Efficiency: >80%
Color Temperature: Warm White, Neutral White, Cool White
Light Source: SMD3528
LED Brand: Epistar
LED QTY: 172pcs
Voltage: 12/24V DC
Power: 12W
Lumen: 1000lm
Size: 1200L*33W*12Hmm
Waterproof Degree: IP20
Warranty: 2 years
Certification: CE&RoHS
Power Supply Efficiency: >80%
Color Temperature: Warm White, Neutral White, Cool White
Features
1) Led cabinet light is used in showcase, displays or (kitchen) furniture
2) Ultra thin flat shape, it can be installed on the top of the cabinet
3) Comes in 6 different sizes: 300mm/500mm/600mm/900mm/1000mm/1200mm
4) Aluminum extrusion with plastic end caps, Acrylic Lens
5) Easy installation
| Model No. | Voltage | Power | LED Quantity | Beam Angle | Lumen | Dimension |
| ES-CT01 | DC24V | 3W | 42pcs | 45 degree | 250lm | 300*33*12mm |
| ES-CT02 | DC24V | 5W | 72pcs | 45 degree | 420lm | 500*33*12mm |
| ES-CT03 | DC24V | 6W | 84pcs | 45 degree | 500lm | 600*33*12mm |
| ES-CT04 | DC24V | 9W | 132pcs | 45 degree | 750lm | 900*33*12mm |
| ES-CT05 | DC24V | 10W | 144pcs | 45 degree | 840lm | 1000*33*12mm |
| ES-CT06 | DC24V | 12W | 172pcs | 45 degree | 1000lm | 1200*33*12mm |
Application
Additional Information
| Payment Terms | L/C, T/T, Western Union |
|---|---|
| Minimum Order | 100 |
| Lead Time / Delivery Time | 20 Day(s) |
| Sample Available | YES |
| Delivery Details | The delivery time will be around 15-25 days upon we receive your payment. |
| FOB Port | Shenzhen |
| Loading Info | You can choose the transportation according to your request. |
| Packing Info | White Box |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Latin America, North America, Northern Europe, Oceania, Western & Southern Europe |
