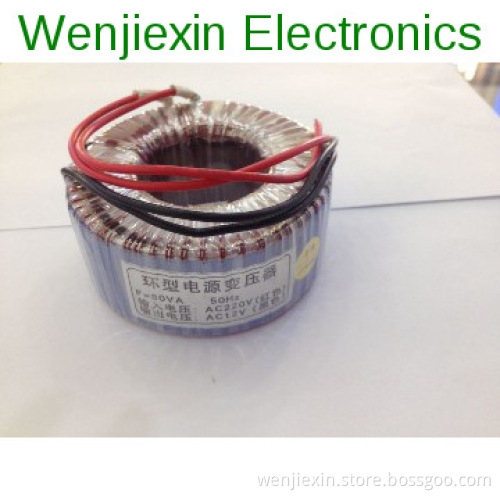

Toroidal power transformer/ring transformer

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Toroidal	copper
Ratio-voltage	150
Frequency	High Frequency
Zone Of Application	European Union
Coil Structure	Toroidal
Coil Number	Autotransformer
Phase	Single
Application	Audio, Current, Electronic, High Frequency, Instrument, Lighting, Other, Potential, Power, Pulse, Reactor, Rectifier
Efficiency	85

Detail Description

Features:
1.Power: 15VA – 4,000VA
2. Universal purpose
3. Low no-load losses
4.Low mechanical hum
5.Low magnetic leakage
6.High efficiencyWire Materials: 1. Copper, Aluminum, Aluminum Clad Copper. 2. The size of transformer total in Aluminum is larger than which total in Copper. 3. Aluminum instead of Copper Cost Save: 13%-35%/PC

Model Number	Power(VA)	Adjusting Rate(%)	Efficiency(%)	Exterior Dimension(mm)	Weight(kg)	Installing Aperture(mm)	Screw(mm)
Height(A)	Exterior(B)
OKD-15	15	20	73	25	65	0.38	Φ6.5	M6
OKD-30	30	16.5	76.6	30	78	0.6	Φ6.5	M6
OKD-50	50	15.2	82.4	35	82	0.85	Φ6.5	M6
OKD-80	80	12.6	84.7	38	88	1.1	Φ6.5	M6
OKD-100	100	11.2	86.5	45	93	1.5	Φ8.5	M8
OKD-120	120	9.6	88	42	115	1.6	Φ8.5	M8
OKD-150	150	7.2	88.1	47	103	1.9	Φ8.5	M8
OKD-160	160	6.6	88.6	42	118	2.1	Φ8.5	M8
OKD-200	200	6.1	89.7	48	120	2.4	Φ8.5	M8
OKD-250	250	5.5	90.3	50	127	2.9	Φ8.5	M8
OKD-300	300	5.2	91.7	55	127	3.2	Φ8.5	M8
OKD-400	400	4.6	93	56	146	4.5	Φ8.5	M8
OKD-500	500	4.0	94	57	147	5.0	Φ8.5	M8
OKD-600	600	4.1	95	72	155	6.7	Φ8.5	M8
OKD-700	700	3.8	95	82	162	8.9	Φ8.5	M8
OKD-800	800	3.8	95.1	72	170	8.2	Φ8.5	M8
OKD-1000	1000	3.3	95	83	163	9.5	Φ10.5	M10
OKD-1200	1200	2.9	96.2	85	165	11.00	Φ10.5	M10
OKD-1500	1500	2.9	96	90	170	13.00	Φ10.5	M10
OKD-2000	2000	2.8	96	105	180	15.6	Φ10.5	M10
OKD-3000	3000	2.5	97	110	210	22.3	Φ10.5	M10
OKD-3500	3500	2.4	97	115	245	25.2	Φ13.5	M13
OKD-4000	4000	2.3	97	130	260	31.5	Φ13.5	M13

Capacity(VA)	H*D (mm)	Regular	Rainproof	Waterproof	Square Transformer(VA)	H*D (mm)
60W	45*88	35	45	67	3	35*55
80W	45*95	40	48	77	5	35*55
105W	47*105	48	55	87	7	43*60
150W	48*112	55	67	96	10	43*60
160W		60	68	96	15	43*60
200W	50*120	65	75	116	20	43*60
250W	55*125	70	85	126	30	52*70
300W	59*125	75	85	130	40	52*70
360W	60*135	90	105	140	50	67*95
400W	65*143	99	115	150	80	67*95
500W	65*150	110	125	180	105	91*90
600W	70*145	145	165	210
800W	80*136	170	190	245
1000W	80*170	220	235	290
1500W	100*200	335	350	595
2000W	110*215	445	460	695

Additional Information

Payment Terms	L/C, T/T, Western Union, Money Order
Minimum Order	1
Lead Time / Delivery Time	5 Day(s)
Sample Available	YES
Delivery Details	T/T 30% deposit. Deliver before payment pay done.
FOB Port	Shenzhen
Loading Info	CIFFOB SHENZHENEXW (deliver to your forwarder if within scope of shenzhen)
Packing Info	QTY : 1 PCS/CARTONStandard double board carton.
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
