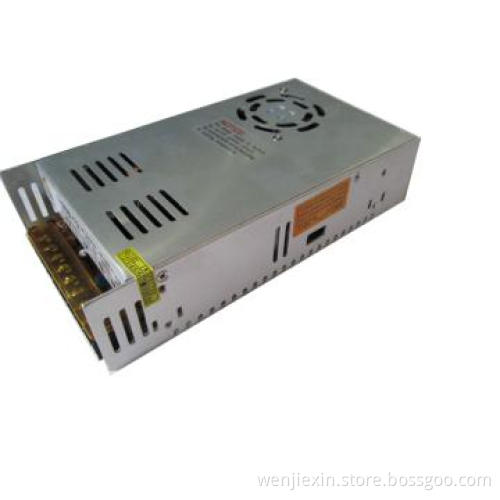

360W 24V Switching power supply with CE,RoHS
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Aluminum alloy shell | Silver |
|---|---|
| Output Frequency | 47～63Hz |
| Output Power | 201-300W |
| Output Voltage | 24V |
| Input Voltage | 220V |
| Output Type | Single |
| Output Current | 15A |
Detail Description
Character
●Full Voltage
●miniaturization/Built in EMI Fliter/low output ripple and noise
●Protection Function/short circuit/over load/over voltage
●100% full load burn-in test
Electrical Parameter:
Input voltage &Frequency range---------176～264VAC/47～63Hz
start impulse current---------------60A@230VAC (cold start)
Output adjustable range---------------±10%（ nominal output voltage）
Voltage Readjust rate（Full load）---------------≦0.5%
Overload protection. ---------------110%-150% intermittent mode self-recovery
Rise time &Hold up time--------------- 50mS,20mSFull load (Typical value)
insulating strength---------------- I/P-O/P,I/P-FG: 1.5KVAC,,O/P-FG:0.5KVAC,1 min
Working temperature----------------.0-40℃@100%, -10%@80%, 50℃@60%
Stock environment ---------------. -20℃～+85℃,20%～95%RH(No frozen)
Safety Standards ---------------. Accord with GB4943, UL60950-1,EN60950-1
EMC Standards--------------- Accord with GB9254, EN55022 class A
Heat Dissipation -------------- Natural convection cooling by air
Weight ---------------0.95kgs/pcs
Size(L*W*H)-----------199*98*42 mm
●Full Voltage
●miniaturization/Built in EMI Fliter/low output ripple and noise
●Protection Function/short circuit/over load/over voltage
●100% full load burn-in test
Electrical Parameter:
Input voltage &Frequency range---------176～264VAC/47～63Hz
start impulse current---------------60A@230VAC (cold start)
Output adjustable range---------------±10%（ nominal output voltage）
Voltage Readjust rate（Full load）---------------≦0.5%
Overload protection. ---------------110%-150% intermittent mode self-recovery
Rise time &Hold up time--------------- 50mS,20mSFull load (Typical value)
insulating strength---------------- I/P-O/P,I/P-FG: 1.5KVAC,,O/P-FG:0.5KVAC,1 min
Working temperature----------------.0-40℃@100%, -10%@80%, 50℃@60%
Stock environment ---------------. -20℃～+85℃,20%～95%RH(No frozen)
Safety Standards ---------------. Accord with GB4943, UL60950-1,EN60950-1
EMC Standards--------------- Accord with GB9254, EN55022 class A
Heat Dissipation -------------- Natural convection cooling by air
Weight ---------------0.95kgs/pcs
Size(L*W*H)-----------199*98*42 mm
| Item name | Output volt/current | Stabilized Voltage precise | Ripple noise | Efficiency | |
| WJX-300 | 5V | 60A | ±1% | ≤100mV |
85% |
Additional Information
| Payment Terms | T/T, L/C, Others |
|---|---|
| Minimum Order | 100PCS |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | FOB SHENZHENCIFEXW |
| FOB Port | Shenzhen |
| Loading Info | Not included shipping fee and tax.Be charge of shipping if within shenzhen scope. |
| Packing Info | QTY: 31PCS/CARTONG.W :25KG/CARTONN.W :28KG/CARTONSTANDARD EXPORT CARTON:SIZE 530(L)*250(W)*430(H)mm |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
