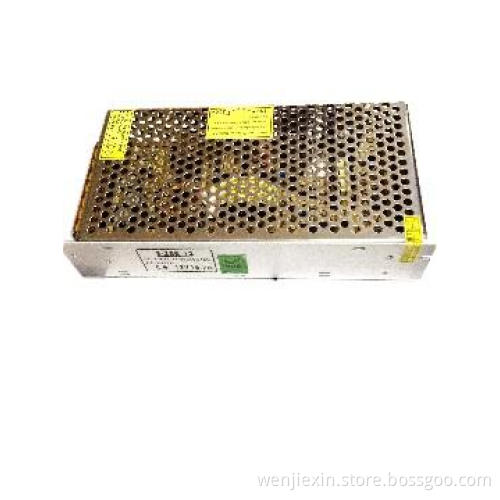

DC15V 200W Single Output Switching Power Supply
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| aluminum case | plastic case |
|---|---|
| Output Frequency | 50-60HZ |
| Input Voltage | 220V |
| Output Power | 101-200W |
| Output Type | Single |
| Output Voltage | 15V |
| Output Current | 13.3A |
Detail Description
LED power supply
The switching power supply is 200W
The switching power supply is 5V/12V/15V/24V single output .
AC input voltage range: 90-132VAC/180-264Vac selected by withch47Hz/63Hz
Input current: 4.5A/115Vac0.24A/230Va
Inrush current: Cold start current 35A/115vac60A/230Vac
Leakage current: <0.5mA/240Vac
Adjustable range for DC voltage: ±10%/radetiytoyyt voltage
Overload protection: 105-150%hiccup mode auto-recovery
Over-voltage protection: 115%-135%
Setup, rise hold up time: 200ms 100ms 20ms
Switching Power Supply is widely used to led lights and strip lights and LED panel lights and so on.
Character
●Full Voltage
●miniaturization/Built in EMI Fliter/low output ripple and noise
●Protection Function/short circuit/over load/over voltage
●100% full load burn-in test
Electrical Parameter:
Input voltage &Frequency range-----------176～264VAC/47～63Hz
start impulse current----------------40A@230VAC (Cold start)
Output adjustable range----------------±10%( nominal output voltage）
Overload protection- (Full load)----------------≦0.5%
Over voltage protection----------------110%-150% intermittent mode self-recovery
Short Circuit protection-------------------Self-Recover
Rise time &Hold up time-------------- 50mS,20mS Full load
insulating strength---------------- I/P-O/P,I/P-FG: 1.5KVAC,,O/P-FG:0.5KVAC,1 min
Working temperature---------------.0-40℃@100%, -10%@80%, 50℃@60%
Stock Environment--------------. -20℃～+85℃,20%～95%RH(No frozen)
Safety Standards---------------. Accord with GB4943, UL60950-1,EN60950-1
EMC Standards --------------- Accord withGB9254, EN55022 class A
Heat Dissipation --------------- Air convection cooling
Weight ---------------0.45kgs/pcs
Size(L*W*H)-------------199*98*42 mm
●Full Voltage
●miniaturization/Built in EMI Fliter/low output ripple and noise
●Protection Function/short circuit/over load/over voltage
●100% full load burn-in test
Electrical Parameter:
Input voltage &Frequency range-----------176～264VAC/47～63Hz
start impulse current----------------40A@230VAC (Cold start)
Output adjustable range----------------±10%( nominal output voltage）
Overload protection- (Full load)----------------≦0.5%
Over voltage protection----------------110%-150% intermittent mode self-recovery
Short Circuit protection-------------------Self-Recover
Rise time &Hold up time-------------- 50mS,20mS Full load
insulating strength---------------- I/P-O/P,I/P-FG: 1.5KVAC,,O/P-FG:0.5KVAC,1 min
Working temperature---------------.0-40℃@100%, -10%@80%, 50℃@60%
Stock Environment--------------. -20℃～+85℃,20%～95%RH(No frozen)
Safety Standards---------------. Accord with GB4943, UL60950-1,EN60950-1
EMC Standards --------------- Accord withGB9254, EN55022 class A
Heat Dissipation --------------- Air convection cooling
Weight ---------------0.45kgs/pcs
Size(L*W*H)-------------199*98*42 mm
| Item name | Output volt/current | Stabilized Voltage precise | Ripple noise | Efficiency | |
| XJ120 | 12V | 10A | ±1% | ≤100mV | 73% |
Additional Information
| Payment Terms | T/T, Western Union, Paypal, Others |
|---|---|
| Minimum Order | 120PCS |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | T/T 30% deposite.Delivery upon payment received |
| FOB Port | Shenzhen |
| Loading Info | FOB shenzhenCIFEXW (no transport fee and tax fee) |
| Packing Info | Quantity :50 boxes/ctnSize :53 *25*43 cmG.W : 25 KGN.W :23 KG |
| Target Market(s) | Eastern Europe, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
