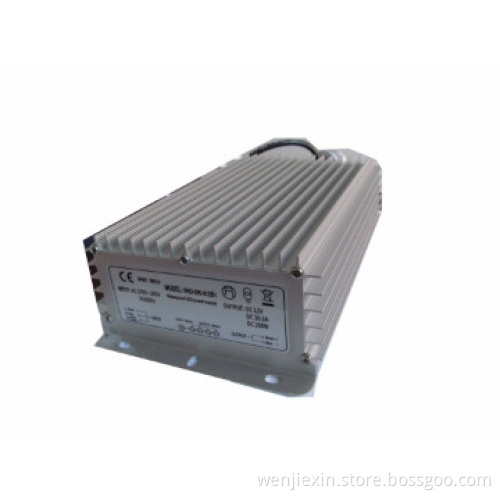

Constant Current Power Supply 200W with IP 67,CE,RoHS,SAA
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Aluminum alloy shell | Silver |
|---|---|
| Output Current | DC16.6A |
| Output Voltage | DC 12±0.5V |
| Output Frequency | 50～60Hz |
| Output Power | 201-300W |
| Input Voltage | 220V |
| Output Type | Single |
Detail Description
protections: short circuit/overload/over temperature
cooling by free air convection
100% full load burn-in test
suitable for LED lighting
Specification:
Parameter standard
| Model: | VHO-150-012B2 | Technologic Data |
| Certificate | ||
| Based on: | IEC 61347-1, IEC 61347-2-13 | |
| Input | Rated voltage: | AC170～265V |
| Frequency: | 50～60Hz | |
| Input power(Loading): | ≤180W | |
| Output | Output current (Loading): | DC12.5A |
| Output voltage (loading): | DC 12V±0.5 | |
| Output voltage(no loading) | DC 12V±0.5 | |
| Short-circuits protect: | output shorted 3 seconds, and will work normally after separated. | |
| Over loading: | 13.5A Max | |
| Voltage resistance | Input-Output | AC 2.0KV/5mA 1Min |
| Input-Housing | AC 2.0KV/5mA 1Min | |
| Non- function | External appearance |
1.The surface has no dirty vestige, rowing the , the wreath oxygen, transform 2.Power cable and the label paper to should 3.The date print clear |
| Mark | The product label is right clear, neat, have no folding line | |
| Other | Whether manual and other related data are well-found or not | |
| efficiency | ≥82% | |
| ripple | ≤600MVpp (120Hz) | |
| To an electric voltage | ≤10Vac |
| Protection grade | IP67 | ||||
| Working Temperature |
-30℃～+50℃
|
using Size (mm): L242×W68×H53
Additional Information
| Payment Terms | L/C, T/T, Money Order |
|---|---|
| Minimum Order | 10 PCS |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | FOB SHENZHENCIFEXW |
| FOB Port | Shenzhen |
| Loading Info | Not included shipping fee and tax.Be charge of shipping if within shenzhen scope. |
| Packing Info | QTY: 3PCS/CARTONG.W :13KG/CARTON.N.W :12KG/CARTONSTANDARD EXPORT CARTON:SIZE 329(L)*279(W)*176(H) |
| Target Market(s) | Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
