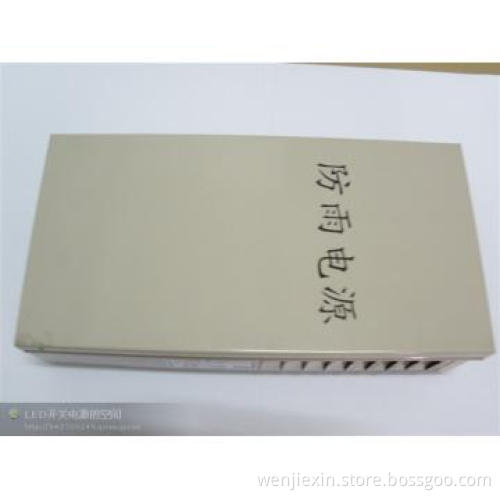

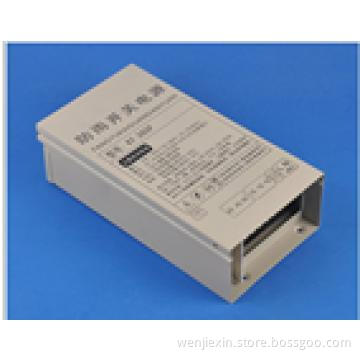

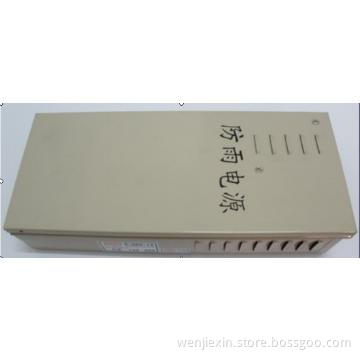

240W SIngle output 12V rainproof Power Supply
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| aluminum case | silver |
|---|---|
| Life | 30000 hours |
| Power | 240W |
| Voltage | 220V |
Detail Description
| Product Electric Parameters | ||||||
| Input specification | Input voltage | AC90V---264V | ||||
| Input frequency | 47-63Hz | |||||
| Input surge | 20A@120VAC | |||||
| Output specification | Output voltage can be adjusted | ±10% | ||||
| Start-up time | ≦1S(input230V,Io=100%) | |||||
| keep time | ≧20mS (input230V,Io=100%) | |||||
| Voltage regulation | (Full load) ≦0.5% | |||||
| Overload protection | 105% - 150% rated power, automatic recovery | |||||
| Over-voltage protection | 105% - 150% of the rated voltage | |||||
| Insulation intensity | Input---output | 1500VAC/1min | ||||
| Input---ground | 1500VAC/1min | |||||
| Input---ground | 500VAC/1min | |||||
| Safety standards | According with GB4943 | |||||
| E M C standards | According with GB9254 | |||||
| Working temperature | - 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) | |||||
| Storage temperature | - 40 ° ~ 85 ° c/10% ~ 95% RH (no frost) | |||||
| height above sea level | ≦2000M | |||||
| Structure | Size (mm) | 237(L)*143*(W)*60 (H) | ||||
| Cooling method | Cooling method | Through the fan make temperature decrease | ||||
| Weight | 0.78KG/PCS | |||||
| Product Type Table | ||||||
| Product model | output specification | ripple, noise | efficiency | |||
| FY-240-12 | 12V | 20A | 120mV | 80% | ||
| FY-240-24 | 24V | 10A | 240mV | 80% | ||
Additional Information
| Payment Terms | T/T, Western Union, Others |
|---|---|
| Minimum Order | 100 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | Delivery upon payment received |
| Loading Info | FOB shenzhen |
| Packing Info | Qty :20PCS /BoxSize : 53* 25 *43 cmG.w : 20 kgN .W : 18 kg |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
