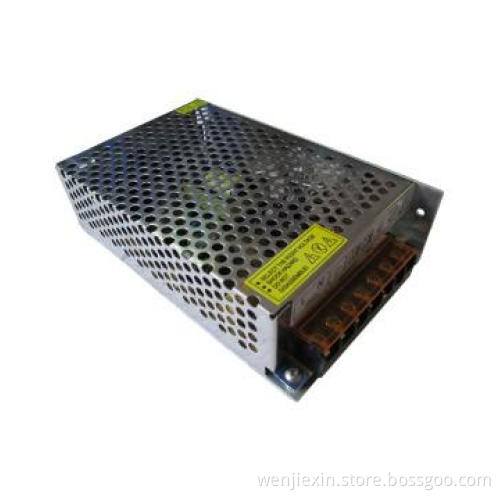

DC12V 60W LED Power Supply approval CE RoHS
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| aluminum case | silver |
|---|---|
| Power | 60W |
| Life | 50000 hours |
| Voltage | 12V |
Detail Description
| Input |
Voltage | AC90V-264V | ||||
| Frequency | 47-63Hz | |||||
| Inrush Current | 1.3A/115Vac0.65A/230Vac | |||||
| Output | OutputVoltage Range | ±10% | ||||
| Setup,Rise Time | 200ms 100ms | |||||
| Hold Time(Typ) | 20ms | |||||
| Adjustable range for DC voltage | ±10%/radetiytoyyt voltage |
|||||
| Protection | Over Load | 105-150%hiccup mode auto-recovery | ||||
| Over Voltage | 115%-135% | |||||
| Safety | GB4943UL60950EN60950 | |||||
| EMC | GB9254NE55022 |
|||||
| Working temperature and humidity | -10℃-+60℃20%-90%RH | |||||
| Withstand voltage | 1min I/P-O/P 1.5kv I/P-FG0.5kv1min |
|||||
| Structure | Specification(mm) | 190*97.8*38 |
||||
| Weight | 0.38KG/PCS | |||||
| Type Table | ||||||
| NO | Model | Output | Error | Waveandnoise | Efficiency | Power |
| WJX0601 | WJX-60W-5 | 5V-12A | ±2% | 50mV | 78% | 60W |
| WJX0602 | WJX-60W-12 | 12V-5A | ±1% | 120mV | 82% | 60W |
| WJX0603 | WJX-60W-15 | 15V-4A | ±1% | 150mV | 80% | 60W |
| WJX0604 | WJX-60W-24 | 24V-3A |
±1% | 240mV | 81% |
70W |
Additional Information
| Payment Terms | L/C, T/T, Western Union, Money Order, Paypal, Others |
|---|---|
| Minimum Order | 100PCS |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | T/T 30% in advance deliver before payment |
| FOB Port | Shenzhen |
| Loading Info | FOB ShenzhenEXWCIF |
| Packing Info | Quantity: 60 boxes/cartonSize:53(L) *25(W) *43(H) cmG.W :27KGN.W:25KG |
| Target Market(s) | Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
