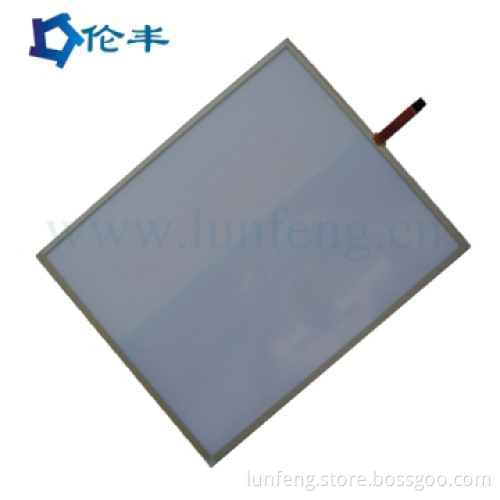

12 inch Touch Screen LCD Panel
  • 12 inch Touch Screen LCD Panel
12 inch Touch Screen LCD Panel

12 inch Touch Screen LCD Panel

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

12 inch Touch Screen LCD Panel 12 inch Touch Screen
12\" Touch Screen Panel 12 inch LCD Panel

Detail Description

  • Light transmission rate up to 100%.
    Fault-tolerant design, automatic detection and reset function design, high reliability.
    Anti-glare, anti-dust, anti-static, anti-electromagnetic interference, can be used for multiple use environment.
    High-speed, up to 300 dots coordinate/second, track smooth, responsive and high accuracy.
    Long-life of up to 100,000hours, without limited of use times.
    Special structure, feel more real.
    Proprietary anti-ray decline of circuit design, effectively prevent decline of the product performance caused by optical devices aging.
    Brushed aluminum or sandblasting surface treatment, nice texture, attractive appearance, suitable for both of internal and external installation.

    1.fast respones time 16ms
    2. ideal for kiosk ,self service terminal ,pos etc
    3. light transimiison rate up to 100%

    E&T it is a professional manufacture for (IR ) Infrared Touch Screen ,interactive whiteboard and LCD Touch Monitors .



    Multi touch screen size from 10\" to 200\"

    IR touch screen L series Features:



    Light transmission rate up to 100%.
    Fault-tolerant design, automatic detection and reset function design, high reliability.
    Anti-glare, anti-dust, anti-static, anti-electromagnetic interference, can be used for multiple use environment.
    High-speed, up to 300 dots coordinate/second, track smooth, responsive and high accuracy.
    Long-life of up to 100,000hours, without limited of use times.
    Special structure, feel more real.
    Proprietary anti-ray decline of circuit design, effectively prevent decline of the product performance caused by optical devices aging.
    Brushed aluminum or sandblasting surface treatment, nice texture, attractive appearance, suitable for both of internal and external installation.

  • Electrical features: Operating Voltage: 5 V DC. Operating Current: 25 mA Max. Mega ohms: digital screen type: 20MΩ, 50V simulation screen type: 10MΩ, 25V, Contact Bounce: Less than 10 Milliseconds typical.
  • Light transmittance: film+ glass >85% film +film >78% raw materials<90%
  • Life span: knock type: >1milion times strokes type: >100, 000 times
  • Mechanical Properites: Operating pressure: <100g, Linearity: <1.5%, Surface rigidty: >3H
  • Environmental parameter: Operating temperature: -10 oC - +60 oC, Storage temperature: -20 oC - +70 oC, Humidity: >90%

Additional Information

Payment Terms T/T
Minimum Order 1,000PCS
Sample Available NO
FOB Port Shenzhen
Target Market(s) North America, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East, Mainland China
