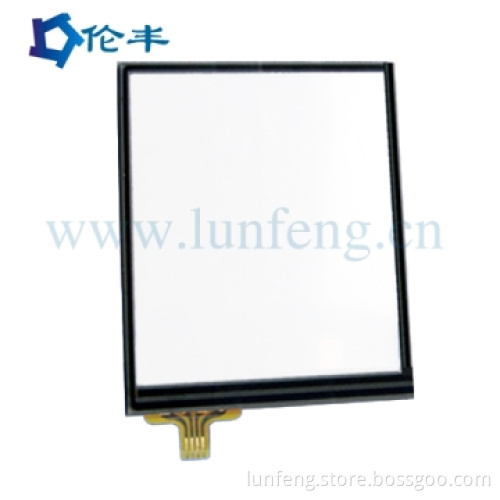

3.5 Capacitive Touch Panel

1.3.5 inch Touch Panel -237
2.film/glass, 4/5wire resistiv
3.Anit-vandal,Anti-glare
4.in GPS&Tablet PC
5.OEM

Resistive touch paneltouch screen technology solutions have been applied more and more to industries, applications, products and services, such as car GPS, tablet PC car DVD, PDA, MP5, MP4,learning machine, dictionary, PSP, consumer electronics, moderate to harsh Machine Control, Process Control, System Control/Office Automation and Car PC, etc.
Surface Hardness 3H
Optical Clarity 80%↑
Operating Temperature -10C ~60C
Endurance Test strikes Over1million
Operating Voltage DC5V
Resistance 200Ω~900Ω
Linearity 1.5%
Faceplate Surface Anti-glare coating,glare coating
Film Thickness 0.175mm, 0.188mm
Glass Thickness 0.7mm, 1.1mm,1.8mm
Operation Pressure 20~150g
Storage Temperature -30°C ~80 °C
Message Noise 5m sec ~ 15m sec
Operating Current 5mA~25mA
Humidity <95%
Isolation Resistance 20MΩ↑  DC25V
Sealable against dust ,water, oil , static

 Touch screen technology solutions have been applied more and more to industries, applications, products and services, such as Kiosks, POS (Point-of-Sale), consumer electronics, tablet PC, moderate to harsh Machine Control, Process Control, System Control/Office Automation and Car PC, etc.

Resistive touchscreens deliver cost-effective, consistent and durable performance in environments where equipment must stand up to contaminants and liquids, such as in restaurants, factories, and hospitals.

Our 4 & 5 Wire Resistive touch screens are available in different sizes up to 20. Custom sizes are available on request. Welcome customer to inquiry!

Features:

• Proven Resistive Technology
• Simplicity of Interface Electronics
• Durable Plastic Construction
• Less Susceptible to Accidental Touch
• Ability to use Finger or Stylus to Activate Touchscreen
• High Linear Analog Output
• Touch Screen: 4-wire resistive touch pad gps
• Optical Specifications:
• Film type: Anti-glare, Anti-reflective
• EM/RFI Shielding
• Contrast Enhancement Filter (CEF) and/or Circular Polarizer
• Glass, Acrylic or Polycarbonate Backer
• Light Transmission: 83 ± 5% at 550nm wave length
• Electrical Specifications:
• Operation Voltage: 5V DC, 1mA
• Insulation Impedance: 10MΩ or more @ 25V(DC)
• Linearity: 98.5% (bias less than 1.5%)
• Chattering Time: 30 msec or less
• Mechanical Specifications:
• Input Method: finger, pen or gloved hand
• Touch Activation Force: 40 grams or less with ? 2mm Manuscript pen
• Surface Hardness: 3H (Pencil Test) & Hard Coated ITO PET
• Reliability:
• Operation Environment: -10°C ~ 60°C
• Storage Temperature: -20°C ~ 70°C
• Humidity: 60°C, 90% RH 120 HR
• Touch Durability: 5 Million touches in a single location
• Surface scratch: 500K (250g, 60mm/s)
• Surface pitting: 10M (250g at 2 times/s
