All Kinds of Touch Screen (manufacturer)

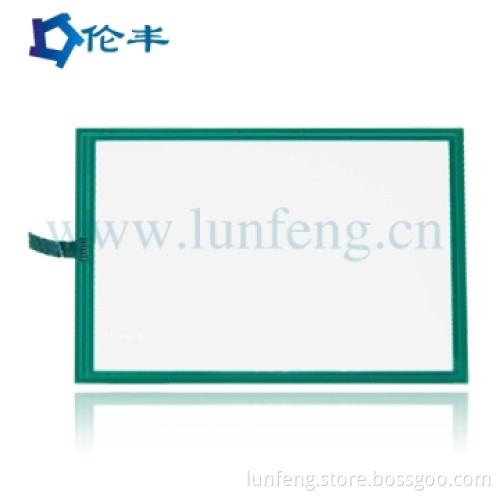

 Infrared Multi Touch Screen

Item No. TTCT070020

Type G+F+F
Thickness 1.8mm adjustable
Operating Voltage 3.3v adjustable
Operating Current 2.5mA-10mA Depends on IC
External Dimension 113.85*171.85mm
View Area Dimension 88.14*154.94mm
Active Area Dimension 87.14*153.94mm
Sensitivity 100±30c 6 contact rod
Interface I2C,USB
Connection of TSP and IC COF or COB
Transparency ≥80% depends on the quantity of layers
Haze ≤2.5% depends on the quantity of layers
Surface coating Anti-Fingerprint,Anti-Smeary,Anti-Reflection etc.
Storage Temperature -15°C~40°C ,<90%RH; 40°C~70°C,<60%RH
Surface Hardness -20°C~40°C ,<90%RH ; 40°C~70°C,<60%RH
Surface Hardness >5H
TSP ESD Level >100 000 000 Times
Application MID,Tablet PC
Touch screen technology solutions have been applied more and more to industries, applications, products and services, such as Kiosks, POS (Point-of-Sale), consumer electronics, tablet PC, moderate to harsh Machine Control, Process Control, System Control/Office Automation and Car PC, etc.

Resistive touchscreens deliver cost-effective, consistent and durable performance in environments where equipment must stand up to contaminants and liquids, such as in restaurants, factories, and hospitals.

Our 4 & 5 Wire Resistive touch screens are available in different sizes up to 20. Custom sizes are available on request. Welcome customer to inquiry!

Features:

• Proven Resistive Technology
• Simplicity of Interface Electronics
• Durable Plastic Construction
• Less Susceptible to Accidental Touch
• Ability to use Finger or Stylus to Activate Touchscreen
• High Linear Analog Output
• Touch Screen: 4-wire resistive touch pad gps
• Optical Specifications:
• Film type: Anti-glare, Anti-reflective
• EM/RFI Shielding
• Contrast Enhancement Filter (CEF) and/or Circular Polarizer
• Glass, Acrylic or Polycarbonate Backer
• Light Transmission: 83 ± 5% at 550nm wave length
• Electrical Specifications:
• Operation Voltage: 5V DC, 1mA
• Insulation Impedance: 10MΩ or more @ 25V(DC)
• Linearity: 98.5% (bias less than 1.5%)
• Chattering Time: 30 msec or less
• Mechanical Specifications:
• Input Method: finger, pen or gloved hand
• Touch Activation Force: 40 grams or less with ? 2mm Manuscript pen
• Surface Hardness: 3H (Pencil Test) & Hard Coated ITO PET
• Reliability:
• Operation Environment: -10°C ~ 60°C
• Storage Temperature: -20°C ~ 70°C
• Humidity: 60°C, 90% RH 120 HR
• Touch Durability: 5 Million touches in a single location
• Surface scratch: 500K (250g, 60mm/s)
• Surface pitting: 10M (250g at 2 times/s
