Membrane Switch Panels

1.Low cost long life expectancy
2.Dust-proof water-proof and gas-proof
3.Good tactile feeling

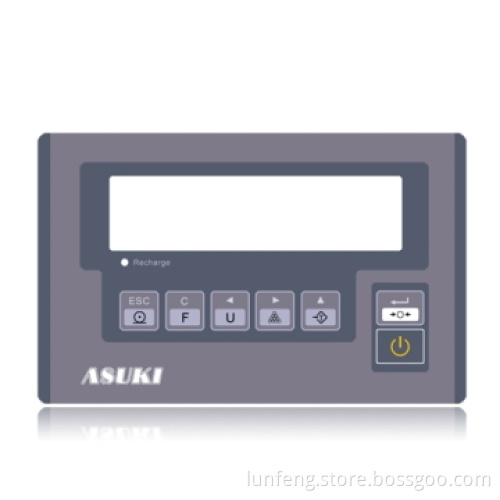

Non-tactile membrane keypad embossed with mylar domesOverlay Materials: The most commonly used base materials are polyester and polycarbonate.

Rear Adhesive: 3M 467MP, 3M 468MP, etc.

Standard Tolerances: +/-.010 inch.

Matching color: Pantone and RAL color matching system.

Tail, pin and circuit layout: subject to customers detailed requests.

Type of Switch:

Non tactile
graphics
Tactile with stainless steel domes
Tactile with poly domes on the circuit
Notice: We have the capacity to provide you membrane switches with other special requirements, such as Shielding, Windows/Lens Coating, Embossing, Embedded LEDs, UV glossy/matte/textured, etc.

Performance of non-tactile membrane keypad embossed with mylar domes

Electrical

Operating Voltage: 0-35 V DC.
Operating Current: 100 MA Max.
Operating Contact Resistance: Less than 100 OHMS typical
Contact Bounce: Less than 5 Milliseconds typical.
Conductors: Printed silver conductive inks or carbon blend.
RFI and ESD Shielding: Available in most configurations.
Mechanical

Life Expectancy: 1,000,000 actuations per switch position
Actuation Force: 6-24 ounces, Range depending on customer specification.
Switch Travel: .005\" to .030\" typical.
Overall Thickness: .020\" to .050\" typical.
Environmental

Storage Temperature: -40 C  to +85 C .
Storage Altitude: Sea level to 35,000 feet.
Operating Temperature and Altitude: -30 C (-30 F) to +75 C (170 F). Can be designed to operate in most environments.
Humidity: No delamination after 24 hours at 80 C and 95%RH.


Membrane Switch Main Application:

Information application products, remote control, telecommunication equipment, OA equipment, household appliance, medical instruments, measuring instruments, toys...etc.
