High Quality Speaker Wire 10AWG
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| conductor | 2*300/0.10mm(tc+bc) + 3*0.4mm BC |
|---|---|
| jacket | transparent + mid blue PVC |
| O.D | 15.2*5.7mm |
| conductor material | TC+BC |
Detail Description

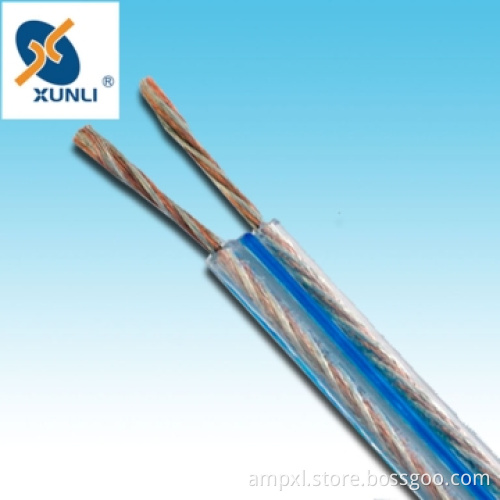

high quality speaker wire 10AWG
Conductor: 2x300/0.10mm(tc+bc) + 3x0.4mm BC
jacket: transparent + mid blue PVC
TC+BC
O.D 15.2 x 5.7mm
Conductor: 2x300/0.10mm(tc+bc) + 3x0.4mm BC
jacket: transparent + mid blue PVC
TC+BC
O.D 15.2 x 5.7mm
Description of products:
1. Rated temperature: 80°C
2. Rated voltage: 300V
3. Reference standard:UL Subject 758,UL 1581,2556 & CSA C22.2 No.210
4. Tinned or bare,stranded or solid copper conductor
5. Colour-coded PVC insulation
6. Uniform insulation thickness to ensure
7. Easy stripping and cutting
8. Passed UL VW-1 & CSA FT1 vertical flame test
9. Resistant to acids,oil,alkali,noisture and fungus
Application:
• Internal wiring of appliances,speaker wires and cables
High quality ,good price and small MOQ.
All colours are available
OEM are welcome
We can make all kinds of electronic wire per your request
| PVC Type | |||
| 2Core | Size(mm²) | Structure No./Dia.(mm) | Overall diameter(mm) |
| 2X0.5mm² | 28X0.15 | 2.4X4.8 | |
| 2X0.75mm² | 42X0.15 | 2.5X5.1 | |
| 2X1.0mm² | 32X0.2 | 2.8X5.7 | |
| 2X1.5mm² | 48X0.2 | 3.2X6.5 | |
| 2X2.5mm² | 49X0.25 | 3.6X7.4 | |
| 2X4.0mm² | 56X0.3 | 4.3X8.8 | |
| 2X6.0mm² | 84X0.3 | 4.8X9.8 |
Additional Information
| Payment Terms | L/C, T/T, Others |
|---|---|
| Minimum Order | 30,000 meters |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | FOB Shenzhen or other deliver term |
| FOB Port | Shenzhen |
| Loading Info | consider by client\'s require |
| Packing Info | consider by client\'s require |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
