Network Lan Cable CAT5e FTP 24AWG
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| conductor | 4*2*0.50mm BC |
|---|---|
| insulation ID | 0.91mm |
| twisted | 4 pairs |
| jacket O.D | 5.8mm |
| packing | 305 meters |
Detail Description

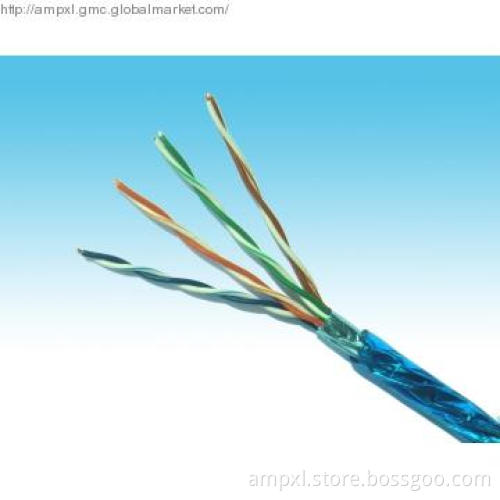

Network Lan cable CAT5e FTP 24AWG
LAN CABLE FTP CAT5 (NETWORK CABLE,COMMUNICATION CABLE)
1.Conductors: 24AWG, Solid bare copper.
2.Insulation:Polythene (PE).
3.Color Code
Pair 1 : Blue,White / Blue
Pair 2 : Orange,White / Orange
Pair 3 : Green,White / Green
Pair 4 : Brown,White / Brown
4.Ripcord: Under Jacket.
5.Jacket : PVC or Halogen-Free(LSOH)
6.Standards UL444 /CSA-C22.2 No.214, Type CM. EIA / TIA-568A and EIA/TIA 568B.2, Horizontal Cable.
7.Applications 10 Base T(IEEE 802.3) Fast Ethernet(IEEE 802.3u) 100vg-AnyLAN(IEEE 802.12) Token Ring (IEEE 802.5) TP-PMD (ANSI X3T9.5) 100 Mbps CDDI ATM 155
8.Optional versions: Also available in 24AWG or 26AWG2-PAIR
9.FTP Single Shielding Cable,Mylar tape. Aluminum-mylar tape ang Drain wire.
Additional Information
| Payment Terms | L/C, T/T, Others |
|---|---|
| Minimum Order | 30000 meters |
| Sample Available | YES |
| FOB Port | Shenzhen |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
