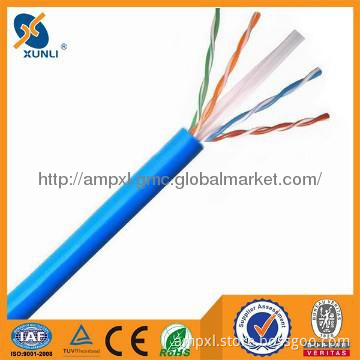

Copper conducted CAT6 LAN cable with high speed
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Network Cable | For the Internet |
|---|---|
| conductor | 4*2*0.57±0.02mm BC/CCA/CCS |
| insulation | 1.03± 0.005 mm HDPE |
| jacket | 6.3± 0.2mm PVC or LSZH |
| packing | 305 meters |
| Type | Cat6 Cable |
| Jacket color | Blue |
Detail Description
Accept OEM authorize supply since1989, over 25 years factory experience
1. LAN Cable
2. Free sample
3. Short time delivery
4. Good quality
5. Competitive price
CAT-6 Application
1.10/100/1000Mbps Ethernet
2.100VG-AnyLAN
3. Token ring
4. ATM155/ATM622 etc
5. Used as work-station outlet to the FD/IDF
And other horizontal cabling, supporting TP-PMD Audio,
6, Integrated service digital network(ISDN), ATM155 Mbps,
7. 100mbps TPDDI, Fast Ether-net etc.
1. Wiring system of Local Area Network(Lan)
2. Safe transmission of high-end data
3. Effective resistance to high electric and magnetic interference
4. The \"+\" CROSS inner frame setted in the center is good for keeping the
balance and Quality, which are so important for the cat. 6 communication.
5. 4 pairs 100 Cat. 6 cable, adopt 23AWG bare copper to be the center conduction,
PE To be the dielectric and fireproof material to be the jacket.
1.Conductors: 23AWG, 4*2*0.57BC/CCA/CCS
2.Insulation: 1.03± 0.005 mm HDPE
3.Color Code:
Pair 1 : Blue,White / Blue
Pair 2 : Orange,White / Orange
Pair 3 : Green,White / Green
Pair 4 : Brown,White / Brown
4.Ripcord: optional
5.jacket : 6.3± 0.2mm PVC or LSZH(Low Smoke & Zero Halogen)
6. Rated Temperature: 600C, 750C
7. Standards: UL444 /CSA-C22.2 No.214, Type CM. EIA / TIA-568A and EIA/TIA 568B.
8. Electrical Characteristics:
Max. Conductor Resistance: 7.0Ω /100m Min. Insulation Elongation: 300%
Max. Resistance Unbalance: 2.3% Min. Propagation Velocity: 0.622C m/s
Min. Conductor Elongation: 20% Characteristic Impedance: 100± 15Ω
Min. Insulation Resistance: 7000MΩ /km.
|
Conductor |
Thick. of Insulation mm |
Nominal O. D. mm |
Nominal Weight Kgs/305m box |
| 23AWG | 1.03± 0.005 | 6.3± 0.2 | 13 |
| Max. Conductor Resistance: 7.0Ω /100m | Min. Insulation Elongation: 300% | |||||
| Max. Resistance Unbalance: 2.3% | Min. Propagation Velocity: 0.622C m/s | |||||
| Min. Conductor Elongation: 20% | Characteristic Impedance: 100± 15Ω | |||||
| Min. Insulation Resistance: 7000MΩ /km | ||||||
| Frequency MHz |
Attenuation dB/100m |
NEXT dB |
PS-NEXT dB |
RL dB |
ELFEXT dB |
PS-ELFEXT dB |
| 1 | 1.9 | 74.0 | 72.3 | 20.0 | 68.0 | 65.0 |
| 4 | 3.7 | 65.0 | 63.3 | 23.0 | 56.0 | 53.0 |
| 8 | 5.3 | 60.7 | 48.8 | 24.5 | 49.9 | 46.9 |
| 10 | 5.9 | 59.0 | 57.3 | 25.0 | 48.0 | 45.0 |
| 16 | 7.5 | 56.0 | 54.2 | 25.0 | 43.9 | 40.9 |
| 20 | 8.4 | 55.0 | 52.6 | 25.0 | 42.0 | 39.0 |
| 25 | 9.5 | 53.3 | 41.3 | 24.3 | 40.0 | 37.0 |
| 31.25 | 10.6 | 52.0 | 49.9 | 23.6 | 38.1 | 35.0 |
| 62.50 | 15.4 | 47.0 | 45.4 | 21.5 | 32.1 | 29.1 |
| 100 | 19.8 | 44.0 | 42.3 | 20.1 | 28.0 | 25.0 |
| 200 | 29.0 | 40.0 | 37.8 | 18.0 | 22.0 | 19.0 |
| 250 | 32.8 | 38.0 | 36.3 | 17.3 | 20.0 | 17.0 |
4. Certificate and Test Report
ISO9001 , CE , RoHs , FLUKE , CCC , GMC , TLC , etc.
5. Packing
Packing length: 100m/roll, 200m/roll, 305m/roll, 1000m/drum
Inner packing : plastic cover / wooden drum / paper drum .
Outer packing : 2 or 3 roll / carton box .
Other packings are available according to client’s request .
6. Contact Information
My dear friend,
If our products catch your interest, please feel free to contact me.
We will do everything posssible to give you the information
you concern within 24 hours. We are looking forward to be
your long term partner!
Add: NO.8, Cuilong RD, BaoLong Industrial Zone, LongGang District,
ShengZhen, CN P.C: 518116
Tel: (+86)13590362306 Fax: (+86)755-89922689
Contact Person: Ms. Cindy Tan
Skype: cindy.ampxl
Email: cindy.ampxl@hotmail.com
a. More than 25 Years Experience focus on cables &OEM manufacturing ,
supplying a wide range of communication cables , including
indoor & outdoor cables , coaxial cables , speaker cables , telephone cables ,
CCTV cables , CATV cables , etc .
b. Highest price-performace ratio.
c. From Raw Material to End Products , Production Continuity and Price Competitive Guaranteed .
d. Professional Fairs Participation and Our Customers .
e. Capacity over 5000,000 meter per month to offer reliable quality product, 2*40’ft container per month
f. Strict quality control system and conductor stores reserve
Additional Information
| Payment Terms | L/C, T/T, D/P, Others |
|---|---|
| Minimum Order | 100 boxes |
| Lead Time / Delivery Time | 25 Day(s) |
| Sample Available | YES |
| Delivery Details | EXW. FOB Shenzhen , CNF,CIF are OK |
| FOB Port | Shenzhen |
| Loading Info | By air, By sea, By land, By rail |
| Packing Info | Packing length: 100m/roll, 200m/roll, 305m/roll, 1000m/drumInner packing : plastic cover / wooden drum / paper drum .Outer packing : 2 or 3 roll / carton box .According to client\'s request |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
