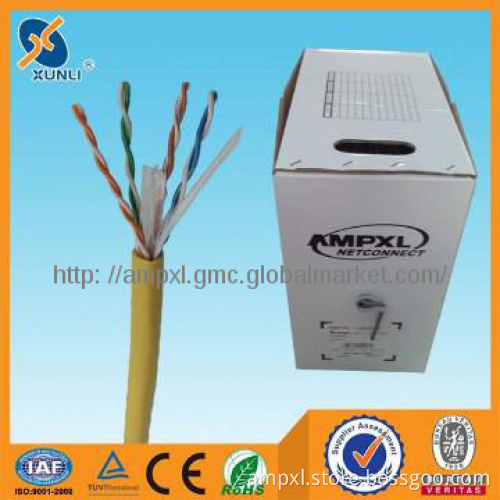

cat6 Lan cable UTP 23AWG copper
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Certificate | ISO, CE, Rohs |
|---|---|
| Conductor | copper 102% |
| Insulation | HDPE 1.0mm |
| Jacket | PVC O.D 6.3mm |
| Work temperature | -20~75 oC |
| Number Of Conductors | >=8 |
| Type | Cat 6 |
Detail Description
cat6 Lan cable UTP 23AWG copper
Accept reliable & steady OEM authorize supply, factory experience since 1989 over 24 years
1. Cable specification:
type: |
0.56MM |
|
Standard |
TIA/EIA 568A/568B IEEE802.3U/IEEE 802.5 ISO 11801 EN50173 |
|
Conductor |
Material |
Copper |
Diameter |
(1/0.56+-0.01mm) |
|
Construction |
4*2*0.56mm |
|
Ripcord |
yes |
|
Dielectric |
Material |
HDPE new material |
Insulation thickness |
0.3MM+-0.05mm |
|
Insulation OD |
1.0MM+-0.03mm |
|
Pair |
4pair |
|
Thickness |
0.6mm+-0.1mm |
|
Jacket Nominal O.D |
Overall Diameter |
6.3mm+-0.1mm |
Suitable for |
indoor |
|
Work Data pass |
>150m |
|
Legend(Surface Ink Print) |
good quality lan cable...............As customer order |
|
Rated Temperate |
-20~+70 oC |
|
Packing |
packing |
1000ft/roll or 305meter/roll..............As customer order |
Package |
pull easy box, Paper carton |
|
Carton Size |
44*36.5*37CM |
|
Q\'TY /CTN |
2box/carton |
2. Application:
Etherrnet,10 Base-T,100Base-T4,ATM,
TP-PMD seppch,Telephone,Multimedia,Trunk Wiring
.ISO9001:2000 CE standard .fluke
Fit for10Base-T,100Base-T,100Base-TX
Operating temperature: -20 to 75°C
3. Features and product technical parameter
Cat5e |
Material (26AWG=0.4MM 25AWG=0.45MM 24AWG=0.5MM) |
package 305m |
Works(datapass) |
Weight (KG) |
0.38mm cca+ 0.35mm ccs (special price ) |
1000ft/box |
80m |
5.2 |
|
0.4mm cca+0.35mm ccs (special price ) |
1000ft/box |
100m |
5.4 |
|
0.4mm |
CA |
1000ft/box |
95m |
5.4 |
0.5mm |
CA |
1000ft/box |
115m |
5.9 |
0.4mm |
CCA+CCS |
1000ft/box |
90m |
5.8 |
0.45mm |
CCA+CCS |
1000ft/box |
100m |
6.0 |
0.5mm |
CCA+CCS |
1000ft/box |
110m |
6.2 |
0.4mm |
CCA |
1000ft/box |
100m |
6.1 |
0.45mm |
CCA |
1000ft/box |
110m |
6.5 |
0.5mm |
CCA |
1000ft/box |
120m |
6.9 |
0.4mm special price |
CCAG+CCS |
1000ft/box |
140m |
7.05 |
0.5mm |
CCAG+CCS |
1000ft/box |
160m |
8.65 |
0.35mm |
copper |
1000ft/box |
130m |
6.8 |
0.4mm |
Copper |
1000ft/box |
140m |
7.1 |
0.45mm |
Copper |
1000ft/box |
150m |
7.9 |
0.5mm |
Copper |
1000ft/box |
160m |
8.7 |
Pair1: Orange/White OrangePair2: Blue/ White BluePair3: Green/ White GreenPair4: Brown/White Brown
4. Packing
a. packing length 305m(1000ft)/ roll/ pull box
Other lengths available according client\'s request
b. Inner packing:wooden rell,plactic rell,and paper rell available
c. Outer packing:carton box,pull out box,pallet available
d. Other packing available according to client\'s request
5. Certificate and Test Report
ISO9001:2008 CE ROHS
Test report pass Fluke test, DCM test.
6. Contact Information
Following is a picture of spdif optical audio cable. The conductor material is up to your choice. We\'ll try our best to meet your demand!
Shenzhen AMP Xunli Technology Co., Ltd.
Address: No.8, Cuilong road, Baolong industrial estate, Longgang district, Shenzhen, China Zip: 518116
Telephone: 86-755-89922789Fax: 86-755-89922689
Skype: ampxl_sales1
Contact person: Mr. Victor Yang
We are factory mainly produce communication cables over 23 years, like
1.lan cable / multi-cores
2. coaxial cable
3. audio stereo interconnect cable / Audio&Video cable
4. Siamese cable
5. alarm cable, etc
Your inquiry will be answered within 24 hours .Looking forward to be your long-term partner ,please feel free to contact me ,we will do our best for you.
7. Why Choose Us ?
a. More than 25Years Experience focus on cables &OEM manufacturing , supplying a wide range of communication cables , including indoor & outdoor cables , coaxial cables , speaker cables , telephone cables , CCTV cables , CATV cables , etc .
b From Raw Material to End Products , Production Continuity and Price Competitive Guaranteed .
c. Professional Fairs Participation and Our Customers .
d. Capacity over 5000,000 meter per month to offer reliable quality product, 2*40’ft container per month
e. strict quality control system and conductor stores reserve
Additional Information
| Payment Terms | L/C, T/T, D/P, Others |
|---|---|
| Minimum Order | 100 box |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | based on client\'s requirement, if we can offer direct product, 7~15 days in a 40\'ft container is ok |
| FOB Port | Shenzhen |
| Loading Info | FOB shenzhen; CIF; CNF; CIP; FCA; EXW, optional by client\'s requirement |
| Packing Info | 305 meter/ pull box, 2 boxes in carton |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
