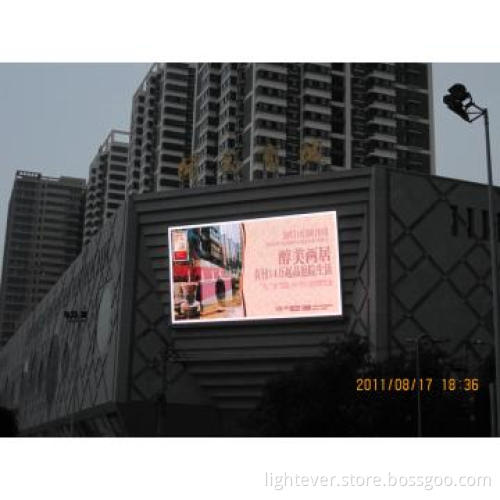

advertising Led Display Screen

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

OEM/ODM	acceptable
Voltage	110-220V

Detail Description

1.Wide application field & short ROI time:comercial advertising LED display screen, Stadium perimeter LED display screen,Mobile trailer LED display screen for mobile media,shopping mall LED display screen for logo showing,bank&stock exchange LED display screen for rates showing, train & bus station LED display screen, air port LED display screen, telecommunication LED display screen system for information showing and instruction 2.High Contrast:4000:1,which is a very high level to ensure a vivid image of our LED display screen system.. 3. First-class LED chip: Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long liftetime and high brightness of our LED display screen sytem 4.Clear vivid image quality even in direct,full-on sunlight to ensure you attracts more audience to get short ROI of your LED display screen\'s investment. 5.Long-term Brightness:7000-nit brightness(for outdor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen. 6.Easy Installation & Using:easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen sytem 7.Convenient Servicing:Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main maketing promotion business. Specification Data for P10mm Outdoor LED Display
No.	Item	Specification
1	Pixel Pitch	PH10mm
2	LED Lamp	Silan (CREE optional)
3	LED Encapsulation & Pixel Configuration	DIP346 1R1G1B (first selection LEDs, to ensure color uniformity)
4	Pixel Density	10000 dots/㎡ (uniformly spread over the surface, to ensure homogeneity)
5	Module Size / Pixel (W x H)	160mmx160mm 16x16dots
6	Cabinet Size / Pixel (W x H)	960mmx960mm 96x96dots
7	Cabinet Type	steel, standard structure (aluminium, rental structure optional)
8	Screen Weight	57KG/㎡
9	Driver IC	MBI 5024
10	Power Supply	Mean Well
11	Best View Distancing	10~33m
12	Viewing Angle (H/V)	120° / 60° (Standard LEDs Viewing Angle)
13	Brightness of White Balance	≥6500 Nits (ensure brilliant image)
14	Brightness Adjustment	256 levels of each color (manually), 8 levels of each color (automatically)
15	Grey Scale	Displaying colors ≥16.7million (synchronized)
16	Operating Environment	Temperature, –30℃~+50℃; Humidity, 10%~90%RH
17	LEDs Lifetime	100,000 Hours (50% brightness)
18	Working Voltage	AC110V/220V ±15%
19	Input Power Frequency Range	≥60Hz
20	Screen Power Consumption	Max: 900w/㎡; Avg: 400w/㎡
21	Refresh Rate	≥1000Hz
22	Frame Rate	50~60Hz
23	Defective Dot Rate	＜0.0001
24	Ingress Protection (Front / Rear)	IP65 / IP43
25	Aspect Ratio	4:3 (16:9 optional)
26	Control System	Linsn controller card + DVI display card + function card (optional), etc.
27	Driving Mode	1/4 scan, constant current
28	MTBF	≥50000 hours
29	Color Temperature	6500K±500
31	Input Signal	RF, S-Video, RGB, RGBHV, YUV, YC & Composition, etc.
32	Signal Data Transfer Interface	RJ45, DVI, VGA, USB, RS232, RS485, etc.
33	Control Distance	cat5 cable, 100m; multimode fiber, 500m; monomode fiber, 10km
34	System Operating Platform	Windows 98 / 2000 / XP / Vista / 7, with a friendly User Interface, etc.
above parameter just for your reference,customizing can be acceptable

Additional Information

Payment Terms	T/T
Minimum Order	1 square meter
Lead Time / Delivery Time	15 Day(s)
Sample Available	YES
Delivery Details	according the request of the customer
Loading Info	ocean or flight
Packing Info	plywood case or flight case
Target Market(s)	Africa(except Middle East), Eastern Europe, Japan & Korea, Mainland China, Middle East, Northern Europe, Central & Southern Asia, Southeast Asia
