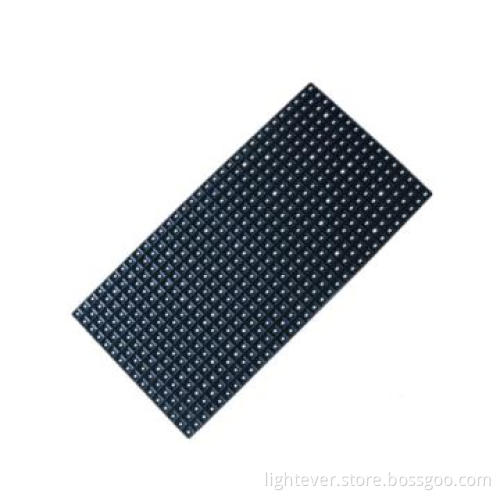

P10 Indoor Led Display

1     Pixel Pitch ：PH10mm  SMD Indoor
2     LED Lamp：Silan (CREE optional)
3     LED Encapsulation & Pixel Configuration：SMD3528 3IN1 (first selection LEDs, to ensure color uniformity)
4     Pixel Density：10000 dots/㎡(uniformly spread over the surface, to ensure homogeneity)
5     Module Size / Pixel (W x H)：320mmx160mm/ 32x16dots
6     Cabinet Size / Pixel (W x H)：960mmx960mm/96x96dots
7     Cabinet Type：steel, standard structure (aluminium, rental structure optional)
8     Screen Weight：40KG/㎡
9     Driver IC：MBI 5024
10    Power Supply：Mean Well
11    Best View Distancing：10~33m
12    Viewing Angle (H/V)：120° / 120° (Standard LEDs Viewing Angle)
13    Brightness of White Balance≥1200 Nits (ensure brilliant image)
14    Brightness Adjustment：256 levels of each color (manually), 8 levels of each color (automatically)
15    Grey Scale≥16,384 shades per color
16    Operating Environment：Temperature, 0℃~+45℃;  Humidity, 10%~90%RH
17    LEDs Lifetime：100,000 Hours (50% brightness)
18    Working Voltage：AC110V/220V ±15%
19    Input Power Frequency Range：50~60Hz
20    Screen Power Consumption：Max: 750w/㎡;  Avg: 350w/㎡
21    Refresh Rate≥1000Hz
22    Frame Rate≥60Hz/s
23    Defective Dot Rate＜0.0001
24    Ingress Protection (Front / Rear)：IP30
25    Aspect Ratio：4:3 (16:9 optional)
26    Control System：Linsn controller card + DVI display card + function card (optional), etc.
27    Driving Mode  ：1/8 scan, constant current
28    MTBF≥5000 hours
29    Color Temperature  ：6500K±500
30    Colors：Displaying colors ≥16.7million (synchronized)
31    Input Signal：RF, S-Video, RGB, RGBHV, YUV, YC & Composition, etc.
32    Signal Data Transfer Interface：RJ45, DVI, VGA, USB, RS232, RS485, etc.
33    Control Distance：cat5 cable, 100m;   multimode fiber, 500m;   monomode fiber, 10km
34    System Operating Platform：Windows 98 / 2000 / XP / Vista / 7, with a friendly User Interface, etc.
