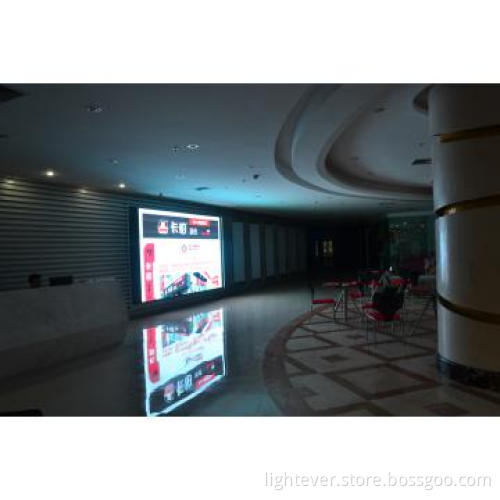

lightever P6mm SMD black face display screen Indoor /led video wall
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Voltage | 110-220V |
|---|
Detail Description
| Specification Data for P6mm Indoor LED Display | ||
| No. | Item | Specification |
| 1 | Pixel Pitch | PH6mm SMD Indoor |
| 2 | LED Lamp | Silan (CREE optional) |
| 3 | LED Encapsulation & Pixel Configuration | SMD3528 3IN1 (first selection LEDs, to ensure color uniformity) |
| 4 | Pixel Density | 27777 dots/㎡ (uniformly spread over the surface, to ensure homogeneity) |
| 5 | Module Size / Pixel (W x H) | 192mmx96mm 32x16dots |
| 6 | Cabinet Size / Pixel (W x H) | 768mmx768mm 128x128dots |
| 7 | Cabinet Type | steel, standard structure (aluminium, rental structure optional) |
| 8 | Screen Weight | 44KG/㎡ |
| 9 | Driver IC | MBI 5024 |
| 10 | Power Supply | Mean Well |
| 11 | Best View Distancing | 6~20m |
| 12 | Viewing Angle (H/V) | 120° / 120° (Standard LEDs Viewing Angle) |
| 13 | Brightness of White Balance | ≥2000 Nits (ensure brilliant image) |
| 14 | Brightness Adjustment | 256 levels of each color (manually), 8 levels of each color (automatically) |
| 15 | Grey Scale | displaying colors ≥16.7million (synchronized) |
| 16 | Operating Environment | Temperature, 0℃~+45℃; Humidity, 10%~90%RH |
| 17 | LEDs Lifetime | 100,000 Hours (50% brightness) |
| 18 | Working Voltage | AC110V/220V ±15% |
| 19 | Input Power Frequency Range | 50~60Hz |
| 20 | Screen Power Consumption | Max: 1050w/㎡; Avg: 400w/㎡ |
| 21 | Refresh Rate | ≥1000Hz |
| 22 | Frame Rate | ≥ 60Hz/s |
| 23 | Defective Dot Rate | ＜0.0001 |
| 24 | Ingress Protection (Front / Rear) | IP30 |
| 25 | Aspect Ratio | 4:3 (16:9 optional) |
| 26 | Control System | Linsn controller card + DVI display card + function card (optional), etc. |
| 27 | Driving Mode | 1/8 scan, constant current |
| 28 | MTBF | ≥10000 hours |
| 29 | Color Temperature | 6500K±500 |
| 31 | Input Signal | RF, S-Video, RGB, RGBHV, YUV, YC & Composition, etc. |
| 32 | Signal Data Transfer Interface | RJ45, DVI, VGA, USB, RS232, RS485, etc. |
| 33 | Control Distance | cat5 cable, 100m; multimode fiber, 500m; monomode fiber, 10km |
| 34 | System Operating Platform | Windows 98 / 2000 / XP / Vista / 7, with a friendly User Interface, etc. |
| above parameter just for your reference,customizing can be acceptable |
Additional Information
| Payment Terms | T/T, L/C, Others |
|---|---|
| Minimum Order | 1 Square Meter/Square Meters as order |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | Usually 15-25 working days according to order quantity and our stock. |
| FOB Port | Shenzhen |
| Loading Info | ocean or flight |
| Packing Info | Plywood case for free; or fright case at 120-150usd/pcs depending on the dimension. |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
