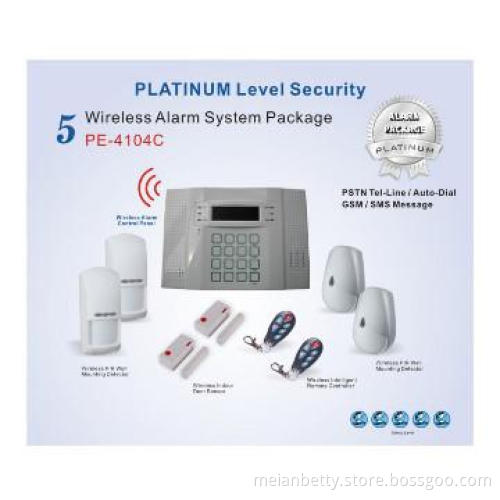

CE-certificate Wireless GSM Home Alarm System for Personal Use

CE Certification  Wireless Home Alarm System GSM Based / GSM Intelligent Alarm System Wireless

Features:

 PE-4104 – wireless alarm control panel + GSM module

1.  Speech indication for all operation steps, English LCD screen

2.  Enable to set Tel-line on / off status monitoring / turn to use GSM transmit alarm automatically

3.  Built-in GSM module, supports call or send out SMS message to mobile phone when alarm had been triggered

4.  Built-in door bell tone

5.  Built-in high tone loudspeaker

6.  Wireless frequency 433MHz/868MHz

7.  Supports dual-way communication, enable connect 8 wireless remote and 8 electronic switch, 1 wireless doorbell and unlimited for quantity of one way wireless siren.

8.  Remote control via phone / voice alarm / 10 seconds for live listen and recording

9.  Wireless device status inspection / wireless alarm linkage

10.  Programmable 8 wired zones / 32 wireless zones

12.  2 alarm center phone number (CMS number) / 4 voice numbers / contact ID protocol

13.  Supports GSM module optional SMS alarm / arm / disarm / control electronic appliance

14.  Supports CID protocol upload / supports 4,6 or 8 digit user ID code

15.  4 group timing arm / disarm setting / remotely arm / disarm / live listen function

16.  Arm / disarm status resume after power off

17. 120 alarm log and inquiry / 10 seconds for recording

18.  Communication protocol to alarm center - Ademco / Contact ID

19.  Inspections wireless device lose or low battery

20.  Built-in rechargeable battery 11.1V / 1000mA up to 8 hours when power off

21.  Included external 15V/2000mA power adapter

PE-7207P – wireless PIR wall mounting detector (Pet immunity) x 2 pcs

1.    adpots self-designed MASK chip with DMT technology

2.    reliable detection performance with dual passive PIR technology

3.    excellent false alarm prevention with look-down window to avoid blind corner

4.    wireless detection distance: 12m@25°C / detection angle: 110°

5.    wireless emitting distance is 120~150 meter (in open area)

6.    pet immunity under 25kgs

7.    wireless emitting frequency is 433MHz / 868MHz

8.    working voltage is 3.0V DC

9.    Anti-EMI >30V/m (30MHz~1GHz) / Anti-White Light >8000LUX

10.   installation height 1.8~2.4 meter (6~8 feet) / single-sided corner mount at 45°to wall

11.   consumption current is 9uA(static)/20mA(alarm)

12.   alarm indication is LED light flash for 2seconds

13.   operation temperature is -10°C to +50°C (14°F to 122°F)

14.   storage temperature is -20°C to +60°C (-4°F to 140°F)

15.   dimension is 136*60*48mm / ivory white color

PE-7208P – wireless PIR wall mounting detector (water-drop design / Pet immunity) x 2 pcs

1. anti-white light with spherical lens and sealed optical design
2. adpots self-designed MASK chip with DMT technology
3. reliable detection performance with dual passive PIR technology
4. wireless detection distance: 9m@25°C / detection angle: 90°
5. wireless emitting distance is 120 ~ 150 meter (in open area)
6. pet immunity under 25kgs
7. wireless emitting frequency is 433MHz / 868MHz
8. working voltage is 3.0V DC (CR123A 3.0V Lithium Battery)
9. Anti-EMI >30V/m(30MHz~1GHz) / Anti-White Light >8000LUX
10. installation height 1.8 ~ 2.5 meter (6 ~ 8 feet) / single-sided corner mount at 45°to wall
11. consumption current is 9uA(static)/20mA(alarm)
12. alarm indication is LED light flash for 2 seconds
13. operation temperature is -10°C to +50°C (14°F to 122°F)
14. storage temperature is -20°C to +60°C (-4°F to 140°F)
15. dimension is 95*64*49mm / ivory white color

PE-8101 – wireless intelligent door sensor (included emergency button) x 2 pcs

1. adopted special micro-power low consumption CPU
2. adopted unique mutil code / with emergency button
3. Code: 28-digit ID, 8-digit function code, 36 digit date code in total
4. working status automatically report
5. open door or window indication
6. working voltage is 4.5V (AAA LR03 1.5V Alkaline Battery x 3 pcs)
7. current consumption: ≤5uA (static) / current emitting: ≤15mA (alarm)
8. wireless emitting frequency: 433MHz / 868MHz
9. wireless emitting distance: 200m (in open area / built in Antenna)
10. working temeprature is -10°C ~ +50°C
11. dimension is 75*34*22mm (transmitter) / 75*13*20mm (magnetic stripe) / ivory white color

PE-9101 – wireless intelligent remote controller (included emergency button) x 2 pcs

1. 6 independent function buttons
2. Code – 28 bit ID, 8 bit Function code, 36 bit Date code
3. with emergency button and control wireless electronic switch function
4. high sensibility within 100 meter range
5. exquisite icon button design easy for the final user operation
6. low consumption for transmitting / indication for signal output visible
7. scientific address code with millions of combination, which enable all the wireless remote controller to be exclusive one, without our permitting, it is impossible to copy our wireless products
8. built-in 2pcs CR2032 3.0V Lithium Battery
9. wireless emitting frequency is 433MHz / 868MHz (LED light flash)
10. working voltage is 5.8V ~ 7V
11. working temperature is -10°C ~ 50°C
12. dimension is 73*35*14mm / weight 22g / grey color
